Cigar
Cigar
Designer: LAB23
Compact Cigarette Disposal for Designated Smoking Areas
Cigar is a dedicated ash receptacle designed to provide a clearly identifiable and controlled location for cigarette disposal.
Its narrow footprint makes it suitable for installation near entrances, terraces, transportation facilities, workplaces, and designated smoking areas where space is limited.
Recommended Applications
- Building entrances
- Hotels
- Restaurants
- Corporate campuses
- Transit areas
- Shopping centers
- Event venues
- Designated smoking areas
Functional Requirements
A commercial ash receptacle should:
- Allow cigarettes to be safely extinguished
- Contain cigarette butts
- Limit the entrance of rainwater
- Allow maintenance personnel to empty the unit
- Resist unauthorized opening
- Be securely fixed to the ground
Specification Text
Provide LAB23 Cigar commercial ash receptacle manufactured from exterior-grade metal with cigarette-extinguishing surface, removable internal collection container, lockable servicing access, selected finish, and ground-fixing provisions.
Frequently Asked Questions
Gallery

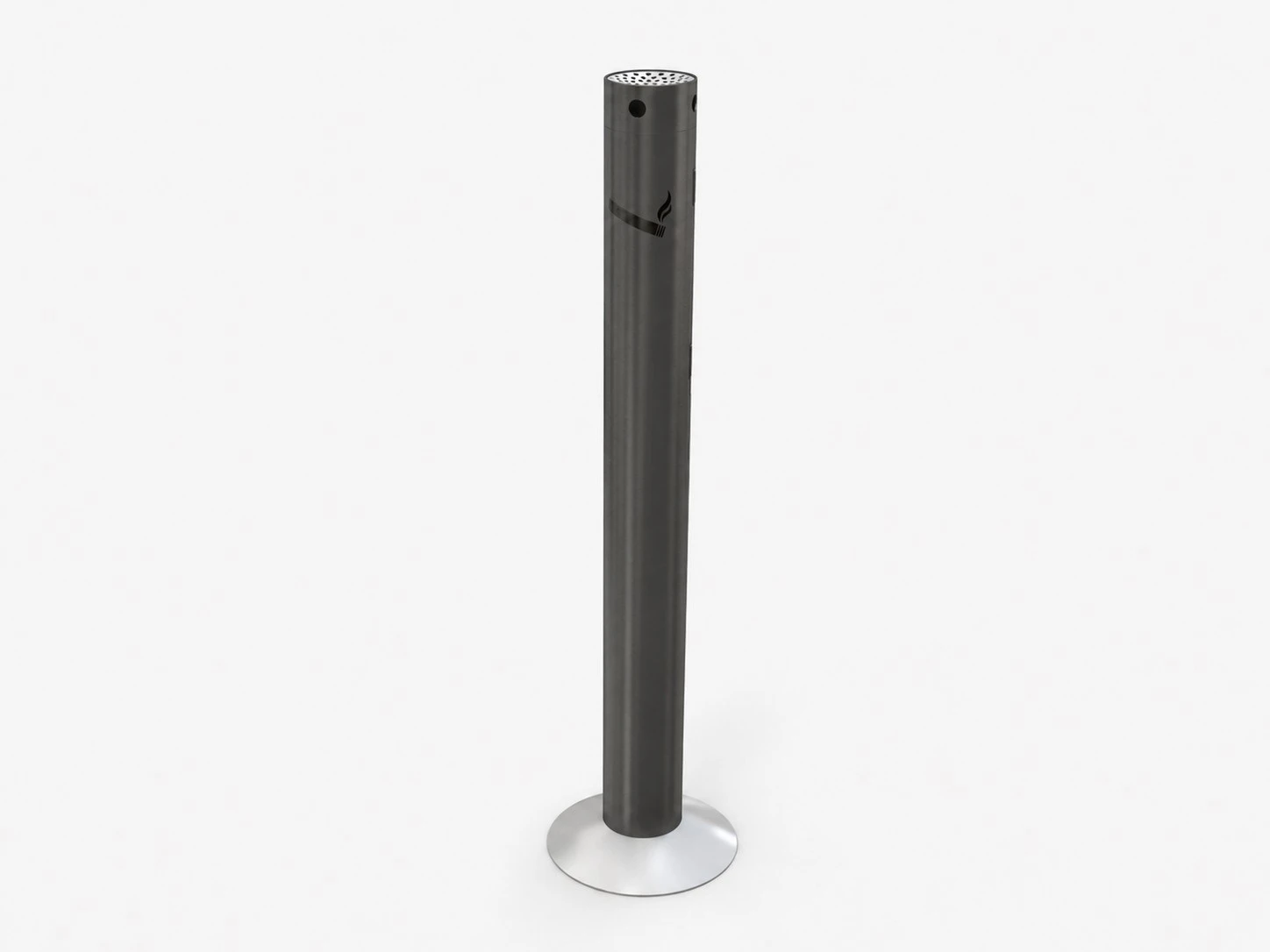

Cigar Ashtray
CIGAR is made by laser-cutting a 102×2 mm steel tube (H 900 mm), and welding a 15/10 mm-thick, 60 mm-high molded shell to the top, using continuous wire welding. Under the hole there is an electro-welded concave perforated sheet metal with holes of 5 mm, where there is a central hole of Ø 20 mm.On the tube of Ø 102 mm, 80 mm from the top is obtained, with laser cutting, a door with light 100×300 mm, secured to the tubular by 2 hinges. On the upper and central part of the door there is a universal triangular key lock. A 30/10 thick plate is welded inside the tube to support the cigarette butt tank made of 10/10 thick galvanized steel with a diameter of 90 mm and a height of 220 mm. At the bottom of the tube, 10 mm from the edge, a plate is welded to which a threaded insert M6 is press-fitted to fasten the base. The base is made by pressing a 30/10 thick sheet metal. All materials are galvanized and powder coated PP.
