Clover
Clover
Designer: Stéphane Chapelet
Waste Collection, Pet-Waste Bags, and Cigarette Disposal
Clover is a multifunctional commercial receptacle designed for parks, residential communities, pedestrian areas, and other dog-friendly public spaces.
The upper section includes a crescent-shaped waste opening, an integrated pet-waste bag dispenser, and a cigarette-disposal system.
By combining several services in one unit, Clover can reduce the number of separate street-furniture elements required at a single location.
Published Capacity and Dimensions
- Capacity: approximately 26.4 U.S. gallons / 100 liters
- Height: approximately 43.4 in / 1,103 mm
- Body diameter: approximately 18.1 in / 460 mm
- Cover diameter: approximately 19.7 in / 500 mm
Construction
The published version includes:
- Steel body
- Pet-waste bag-roll compartment
- Removable cigarette-butt container
- Removable internal waste container
- Lockable access door
- Integrated rain cover
- Four ground-fixing holes
Specification Text
Provide LAB23 Clover multifunctional commercial receptacle consisting of a 100-liter waste compartment, integrated pet-waste bag dispenser, cigarette-extinguishing and collection system, lockable servicing access, and steel rain cover. Provide selected exterior powder-coated finish and ground anchoring.
Frequently Asked Questions
Models & Variations

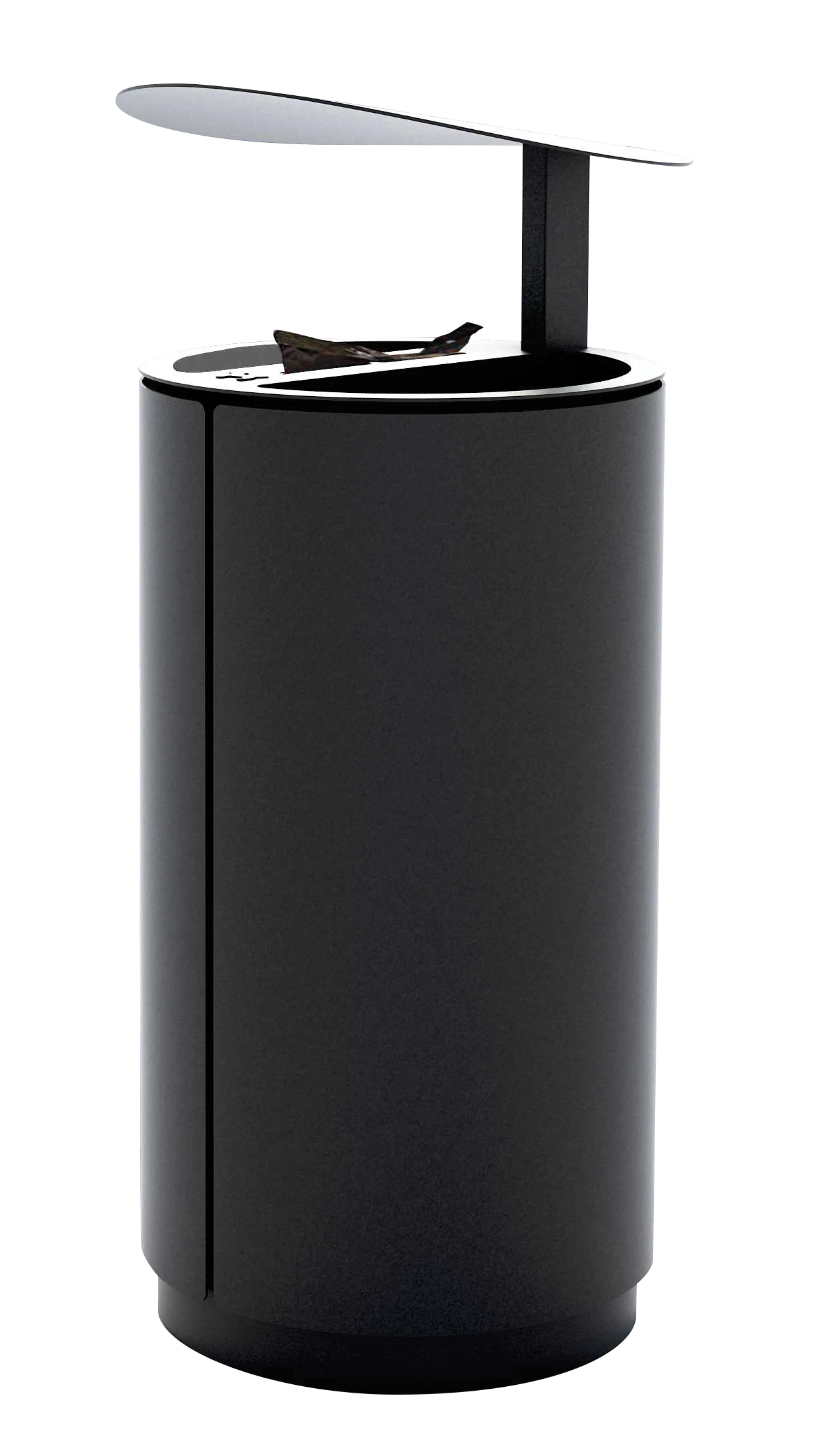

Clover Cylindrical
The Clover Cylindrical litter bin is made of steel EN10111DD11, with thicknesses ranging from 20 to 30/10. The internal container, removable thanks to the door in the body of the litter bin, is made of galvanized steel and has two oval holes that act as handles. The upper part of the basket has a “crescent” feeding hole flanked by a slot for the extraction of bags for dog dejections. It is also present the throws cigarettes, composed of a laser-pierced sheet 10/10, useful for extinguishing the stub and the conferment of the same. Both the box containing the butts and the one containing the roll of bags for dog dejections are placed inside the basket by means of guides that allow them to be removed once the door has been opened.On the bottom of the bin there are 4 holes 12mm diameter for fixing to the ground through appropriate plugs (not supplied). On request we will supply M10 threaded bar pieces to be used with chemical dowel (not supplied). The rain cover is made of laser-cut and calendered 30/10 thick sheet metal.
This product is entirely made in Italy from steel subjected to an electrolytic galvanising cycle and subsequently painted with PP powders with Ral colour of your choice.
The Clover Cylindrical litter bin is made of steel EN10111DD11, with thicknesses ranging from 20 to 30/10. The internal container, removable thanks to the door in the body of the litter bin, is made of galvanized steel and has two oval holes that act as handles. The upper part of the basket has a “crescent” feeding hole flanked by a slot for the extraction of bags for dog dejections. It is also present the throws cigarettes, composed of a laser-pierced sheet 10/10, useful for extinguishing the stub and the conferment of the same. Both the box containing the butts and the one containing the roll of bags for dog dejections are placed inside the basket by means of guides that allow them to be removed once the door has been opened.On the bottom of the bin there are 4 holes 12mm diameter for fixing to the ground through appropriate plugs (not supplied). On request we will supply M10 threaded bar pieces to be used with chemical dowel (not supplied). The rain cover is made of laser-cut and calendered 30/10 thick sheet metal.
This product is entirely made in Italy from steel subjected to an electrolytic galvanising cycle and subsequently painted with PP powders with Ral colour of your choice.
