Coral Bins
Coral Bins
Designer: LAB23
Organic Laser-Cut Pattern with Durable Steel Construction

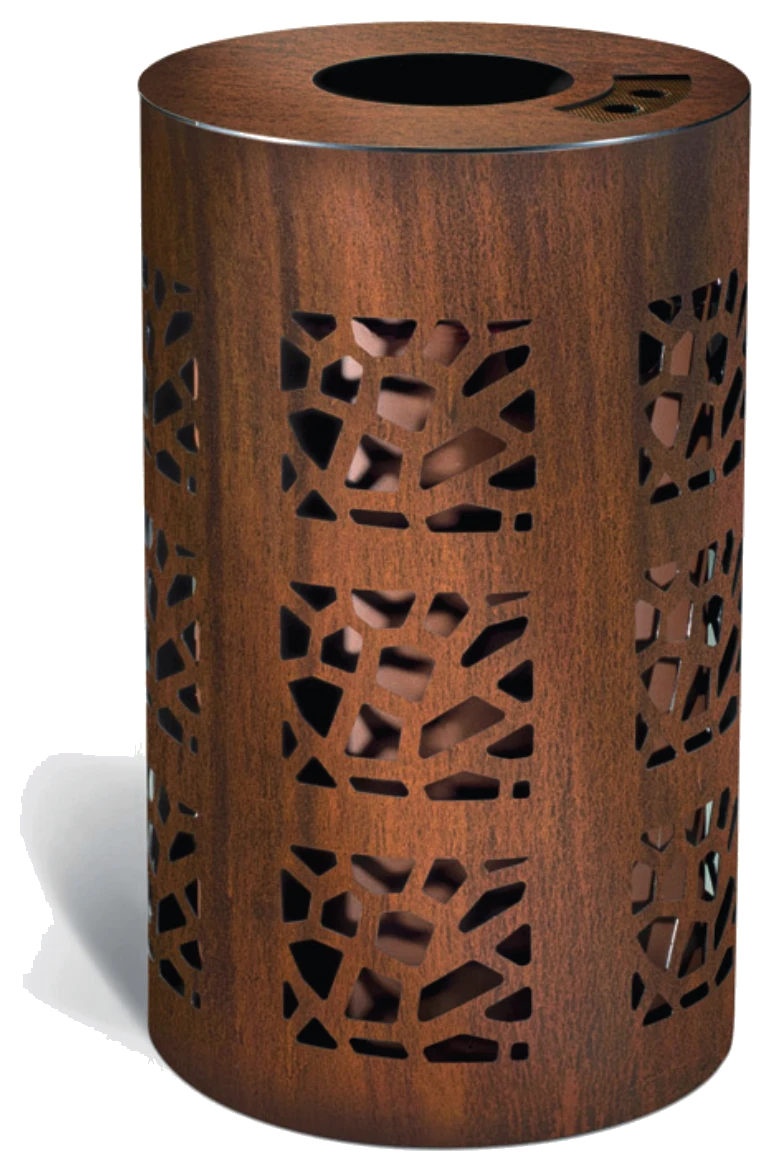

Coral is a commercial waste receptacle characterized by a decorative laser-cut pattern inspired by marine coral.
The open exterior texture gives the product a visually lighter appearance while allowing it to coordinate with contemporary landscape and architectural settings.
Published Capacity and Dimensions
- Capacity: approximately 13.2 U.S. gallons / 50 liters
- Diameter: approximately 18.3 in / 466 mm
- Height: approximately 31.5 in / 800 mm
- Waste opening: approximately 7.9 in / 200 mm
- Published weight: approximately 57.3 lb / 26 kg
- Ashtray capacity: approximately 0.13 U.S. gallon / 0.5 liter
Available Options
- Integrated ashtray
- Rain cover
- Steel base
- Concrete base
- Powder-coated steel
- Corten steel upon request
- Custom RAL colors
Servicing
The hinged upper cover is secured with a triangular-key lock. The internal galvanized-steel container includes handles to facilitate removal and emptying.
Specification Text
Provide LAB23 Coral commercial trash receptacle with decorative laser-cut steel outer body, removable galvanized internal container, hinged lockable cover, and optional integrated ashtray and rain cover. Capacity shall be approximately 50 liters. Provide selected protective treatment, finish, base, and ground anchoring.
Frequently Asked Questions
Models & Variations

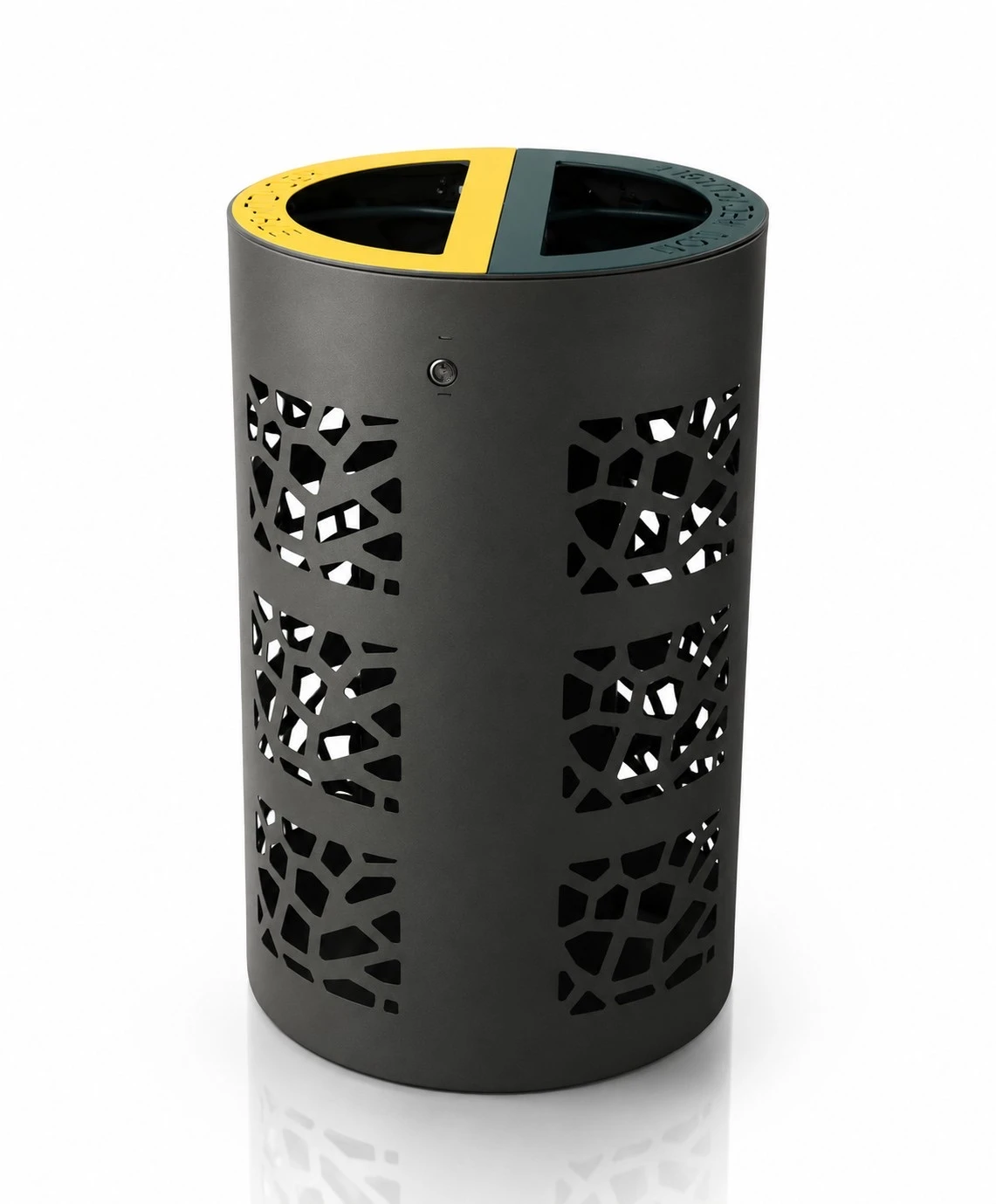

Coral Duo
Two-Stream Waste Separation with a Decorative Identity
Coral Duo is a two-stream recycling receptacle designed to make waste separation visible, intuitive, and visually coordinated with architectural public spaces.
The two compartments are distinguished through colors, openings, and identification graphics. The exterior uses the Coral collection’s characteristic laser-cut pattern.
Published Capacity
- Two separate 50-liter compartments
- Total nominal capacity: approximately 26.4 U.S. gallons / 100 liters
Published Dimensions
- Height: approximately 29.1 in / 740 mm
- Diameter of each body: approximately 18.1 in / 460 mm
Custom Identification
The two waste streams may be identified through:
- Different lid colors
- Custom wording
- Recycling symbols
- Laser-cut graphics
- Applied labels
- Project-specific language
Options
- Rain cover
- Metal base
- Concrete base
- Powder-coated steel
- Corten steel
- Custom RAL colors
Specification Text
Provide LAB23 Coral Duo two-stream recycling receptacle consisting of two coordinated 50-liter waste compartments with decorative laser-cut steel bodies. Provide project-specific opening colors, waste-stream graphics, internal containers, lockable servicing access, optional rain cover, and selected mounting system.
Construction and Finish
The outer part of the CORAL DUO bin is made in steel of 20/10 thickness and is characterized by engraved curve figures with a variable height and 10 mm width. Inside the bin, there is a divider in steel sheet of 15/10 thickness, on which two elements supporting the two bag-holders, made in galvanized steel of 6 mm diam, are fixed. The cover of the CORAL DUO bin is made in steel of 30/10 thickness. It is fixed to the structure through a strong hinge, resulting from the fold of elements in steel of 30/10 thickness with 2 screws M8. The closing of the cover takes place through a spring lock with triangular key. On the upper part there are 2 plates, with inscriptions and different colours , indicating the chosen type of waste.
The bin can fixed to the ground through specific bolts (not provided) to be inserted on holes of 11 mm diam. placed on the bottom. There is the option of adding a base in steel of 30/10 thickness and 50 mm height, curving inwards by 33 mm to the outer perimeter of the bin, or a base in concrete, besides a raincover in steel sheet of 25/10 thickness supported by a tube with rectangular section 50x30x2.
For the realization of this product made in Italy, Steel EN10111DD11 is used and later treated with a cycle of sandblasting, cataphoresis and powder coating. Such cycle is meant to guarantee the protection of the painted products, in an environment of C4 corrosion class, as requested by the UNI regulations EN ISO 12944-2. The products are eventually polyester-powder coated with RAL colours at choice.
As an alternative to steel EN10111DD11, the production in corten is also available, on demand. In this case the material is treated with a specific oxidation process.
Two-Stream Waste Separation with a Decorative Identity
Coral Duo is a two-stream recycling receptacle designed to make waste separation visible, intuitive, and visually coordinated with architectural public spaces.
The two compartments are distinguished through colors, openings, and identification graphics. The exterior uses the Coral collection’s characteristic laser-cut pattern.
Published Capacity
- Two separate 50-liter compartments
- Total nominal capacity: approximately 26.4 U.S. gallons / 100 liters
Published Dimensions
- Height: approximately 29.1 in / 740 mm
- Diameter of each body: approximately 18.1 in / 460 mm
Custom Identification
The two waste streams may be identified through:
- Different lid colors
- Custom wording
- Recycling symbols
- Laser-cut graphics
- Applied labels
- Project-specific language
Options
- Rain cover
- Metal base
- Concrete base
- Powder-coated steel
- Corten steel
- Custom RAL colors
Specification Text
Provide LAB23 Coral Duo two-stream recycling receptacle consisting of two coordinated 50-liter waste compartments with decorative laser-cut steel bodies. Provide project-specific opening colors, waste-stream graphics, internal containers, lockable servicing access, optional rain cover, and selected mounting system.
Construction and Finish
The outer part of the CORAL DUO bin is made in steel of 20/10 thickness and is characterized by engraved curve figures with a variable height and 10 mm width. Inside the bin, there is a divider in steel sheet of 15/10 thickness, on which two elements supporting the two bag-holders, made in galvanized steel of 6 mm diam, are fixed. The cover of the CORAL DUO bin is made in steel of 30/10 thickness. It is fixed to the structure through a strong hinge, resulting from the fold of elements in steel of 30/10 thickness with 2 screws M8. The closing of the cover takes place through a spring lock with triangular key. On the upper part there are 2 plates, with inscriptions and different colours , indicating the chosen type of waste.
The bin can fixed to the ground through specific bolts (not provided) to be inserted on holes of 11 mm diam. placed on the bottom. There is the option of adding a base in steel of 30/10 thickness and 50 mm height, curving inwards by 33 mm to the outer perimeter of the bin, or a base in concrete, besides a raincover in steel sheet of 25/10 thickness supported by a tube with rectangular section 50x30x2.
For the realization of this product made in Italy, Steel EN10111DD11 is used and later treated with a cycle of sandblasting, cataphoresis and powder coating. Such cycle is meant to guarantee the protection of the painted products, in an environment of C4 corrosion class, as requested by the UNI regulations EN ISO 12944-2. The products are eventually polyester-powder coated with RAL colours at choice.
As an alternative to steel EN10111DD11, the production in corten is also available, on demand. In this case the material is treated with a specific oxidation process.

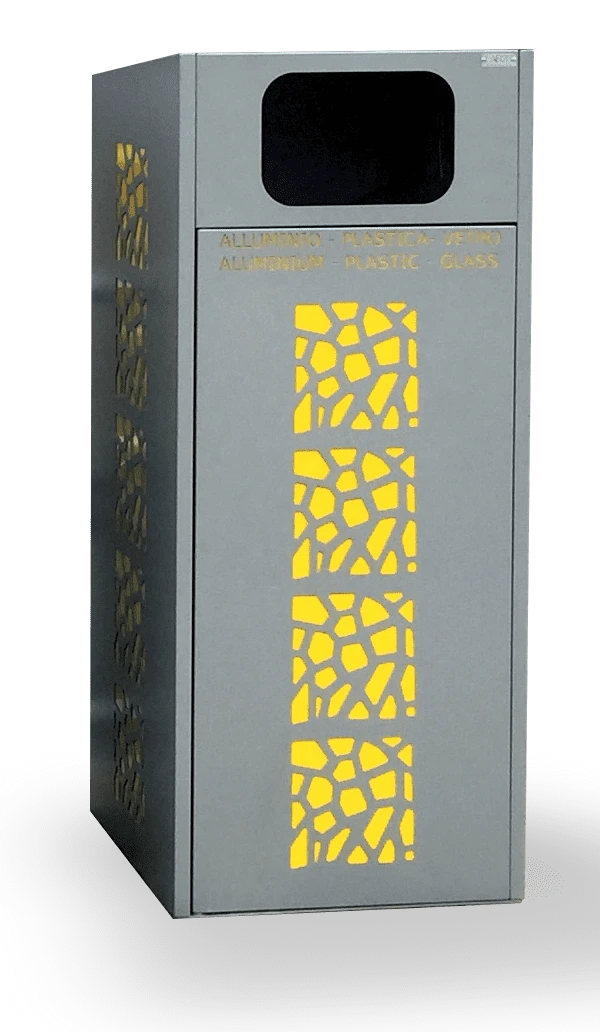

Coral Cover
Design and practicality distinguish these waste bin covers. The classic containers of either 120 litres capacity don’t make our cities very attractive, therefore LAB23 realized a design product that disguise these containers that are covered and ensured by a door with a universal triangular key lock. The compartment that hosts the container for the recycling of organic waste has a muzzle shaped door that avoids rodents to access it. Customizable product on request.
Design and practicality distinguish these waste bin covers. The classic containers of either 120 litres capacity don’t make our cities very attractive, therefore LAB23 realized a design product that disguise these containers that are covered and ensured by a door with a universal triangular key lock. The compartment that hosts the container for the recycling of organic waste has a muzzle shaped door that avoids rodents to access it. Customizable product on request.
