Easy Bollards
Easy Bollards
Designer: Leonardo Battaglini
Easy — a LAB23 collection spanning bins & ashtrays, bollards.
Models & Variations

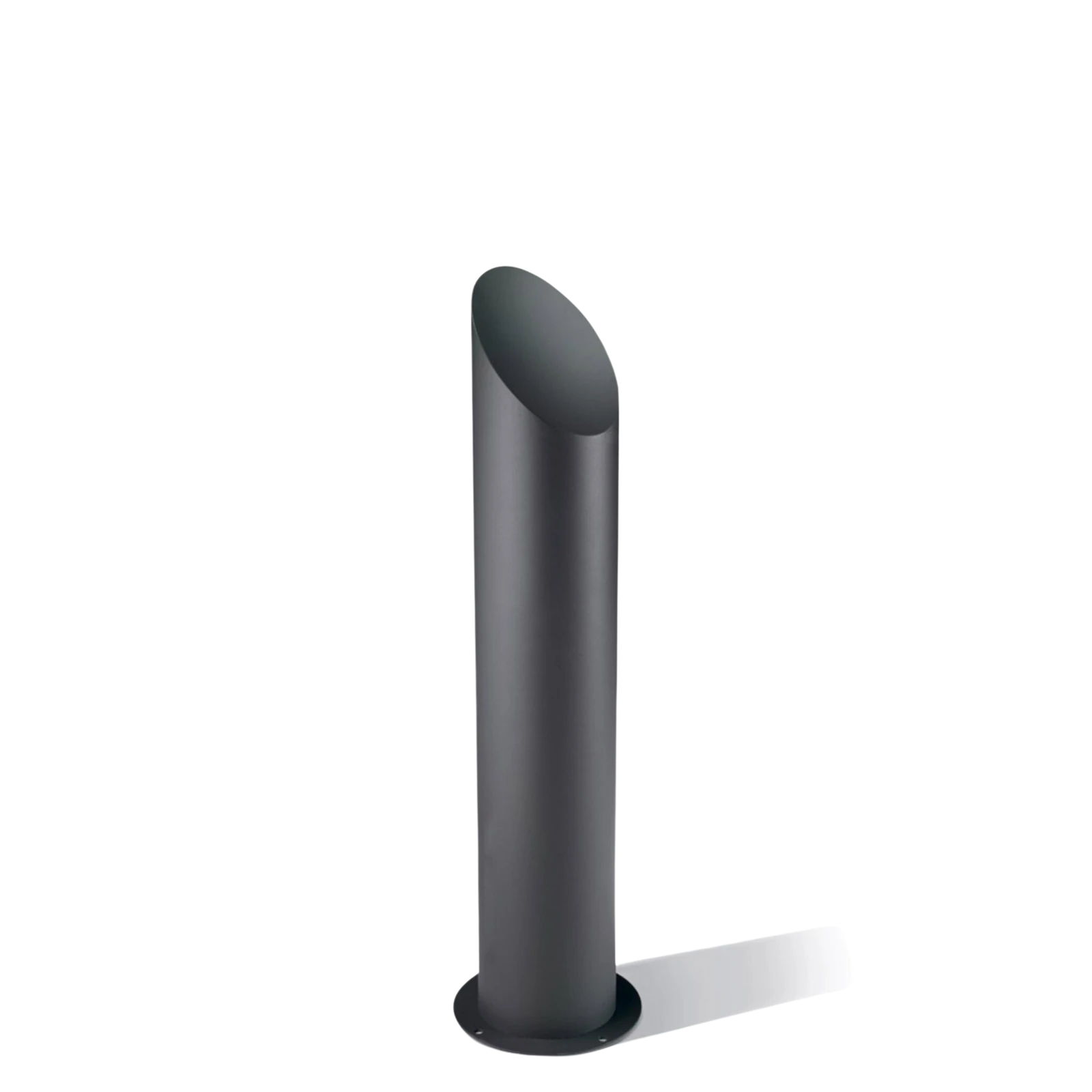

Easy
The outer part of the EASY bin is made in steel of 15/10 thickness. The inner container is made in galvanized steel of 10/10 thickness and 348 mm diam. and 640 mm h. On the upper part of the inner container there are two loops serving as handles to help its extraction. The cover of the EASY bin is made in steel of 30/10 thickness. It is fixed to the structure through a strong hinge, resulting from the fold of elements in steel of 30/10 thickness with 2 screws M8. The closing of the cover takes place through a spring lock with triangular key. The optional ashtray is placed on the cover, where a specific opening is created to weld, behind it, a pierced steel sheet of 10/10 thickness with holes of 5 mm to put out the cigarette. There are also 2 holes of 20 mm diam. for the insertion of cigarette butts. The container of 15/10 thickness is placed along the rails, welded near the pierced sheet. The bin can fixed to the ground through specific bolts (not provided) to be inserted on holes of 11 mm diam. placed on the bottom. There is the option of adding a base in steel of 30/10 thickness and 50 mm height, curving inwards by 33 mm to the outer perimeter of the bin, or a base in concrete.
This product is entirely made in Italy from steel subjected to an electrolytic galvanising cycle and subsequently painted with PP powders with Ral colour of your choice.
As an alternative to steel EN10111DD11, the production in corten is also available, on demand. In this case the material is treated with a specific oxidation process.
The galvanized steel used is steel EN10346DX51D+Z and, unless otherwise stated, is not painted.
The outer part of the EASY bin is made in steel of 15/10 thickness. The inner container is made in galvanized steel of 10/10 thickness and 348 mm diam. and 640 mm h. On the upper part of the inner container there are two loops serving as handles to help its extraction. The cover of the EASY bin is made in steel of 30/10 thickness. It is fixed to the structure through a strong hinge, resulting from the fold of elements in steel of 30/10 thickness with 2 screws M8. The closing of the cover takes place through a spring lock with triangular key. The optional ashtray is placed on the cover, where a specific opening is created to weld, behind it, a pierced steel sheet of 10/10 thickness with holes of 5 mm to put out the cigarette. There are also 2 holes of 20 mm diam. for the insertion of cigarette butts. The container of 15/10 thickness is placed along the rails, welded near the pierced sheet. The bin can fixed to the ground through specific bolts (not provided) to be inserted on holes of 11 mm diam. placed on the bottom. There is the option of adding a base in steel of 30/10 thickness and 50 mm height, curving inwards by 33 mm to the outer perimeter of the bin, or a base in concrete.
This product is entirely made in Italy from steel subjected to an electrolytic galvanising cycle and subsequently painted with PP powders with Ral colour of your choice.
As an alternative to steel EN10111DD11, the production in corten is also available, on demand. In this case the material is treated with a specific oxidation process.
The galvanized steel used is steel EN10346DX51D+Z and, unless otherwise stated, is not painted.

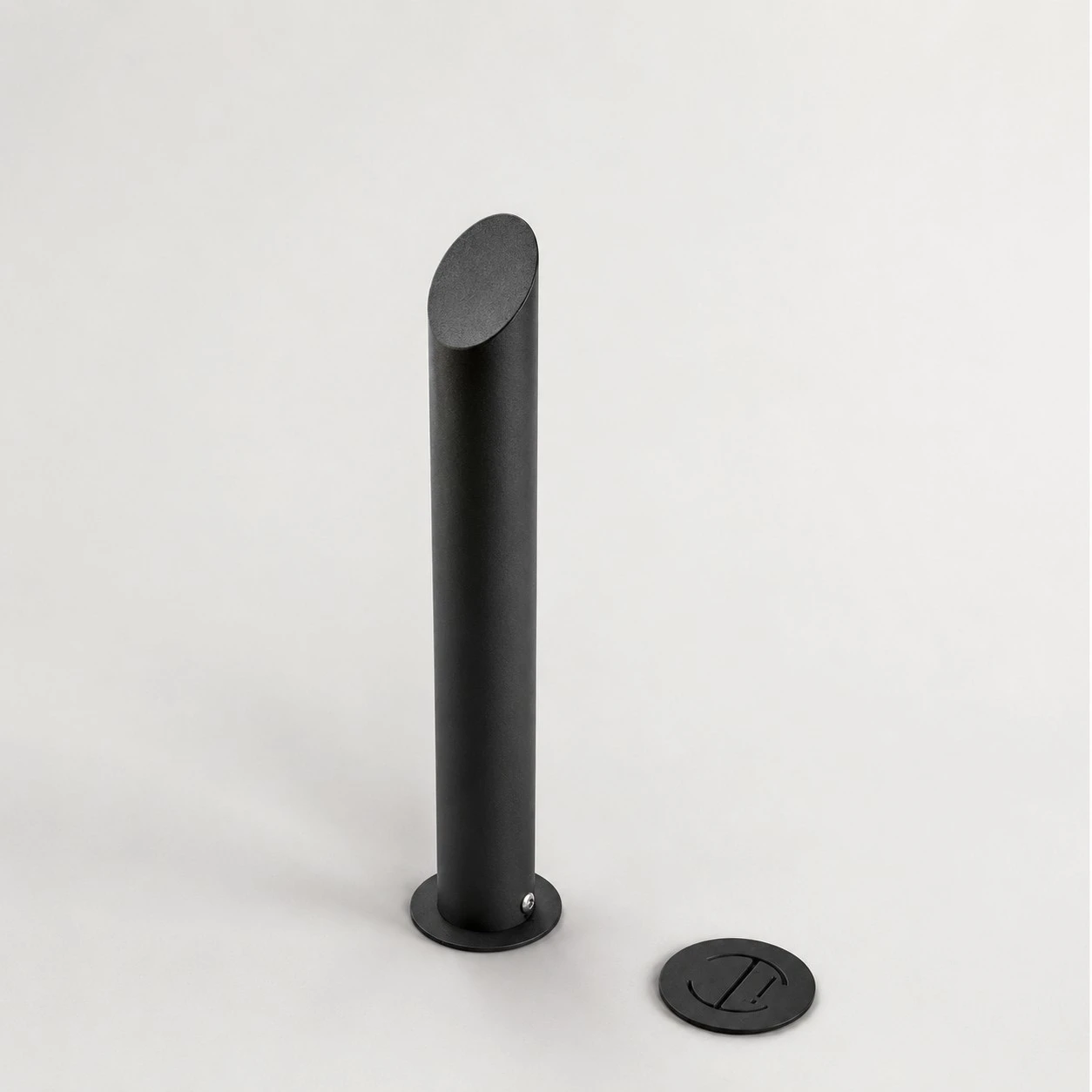

Easy Removable
The removable bollard EASY is made in steel with variable thickness, from 20/10 to 50/10 . The post is made in tubular steel of 102 mm diam. and 3 mm thickness, laser-cut on the upper part with an inclination of 45°, where a plate of 30/10 thickness is welded through continuous welding, later polished so that it’s seamless.
The bollard is placed inside an element, which is later cemented. This element is made in tubular steel of 108 mm diam. and 2 mm thickness. A plate of 50/10 thickness with 160 mm diam. is welded on the top of this element, where a locking system for the post with a triangular key lock is created through laser-cut. This type of carving allows you to remove the bollard without leaving a hole on the ground.
This product is entirely made in Italy from steel subjected to an electrolytic galvanising cycle and subsequently painted with PP powders with Ral colour of your choice.
The removable bollard EASY is made in steel with variable thickness, from 20/10 to 50/10 . The post is made in tubular steel of 102 mm diam. and 3 mm thickness, laser-cut on the upper part with an inclination of 45°, where a plate of 30/10 thickness is welded through continuous welding, later polished so that it’s seamless.
The bollard is placed inside an element, which is later cemented. This element is made in tubular steel of 108 mm diam. and 2 mm thickness. A plate of 50/10 thickness with 160 mm diam. is welded on the top of this element, where a locking system for the post with a triangular key lock is created through laser-cut. This type of carving allows you to remove the bollard without leaving a hole on the ground.
This product is entirely made in Italy from steel subjected to an electrolytic galvanising cycle and subsequently painted with PP powders with Ral colour of your choice.
