Five
Designer: LAB23
Five is a coordinated family of planters designed to give landscape architects flexibility in scale, arrangement, and planting composition. Multiple units can be grouped to create structured or informal planting layouts.
The current catalog identifies two variations. Dimensions, capacities, materials, drainage, and installation details must be confirmed for each version.
Recommended Applications
Public gardens, plazas, hospitality landscapes, retail projects, campuses, and residential developments.
Specification Text
Provide LAB23 Five commercial planter in the selected size and configuration, with approved material, planting capacity, drainage system, finish, and ground-fixing provisions.
Frequently Asked Questions
Models & Variations

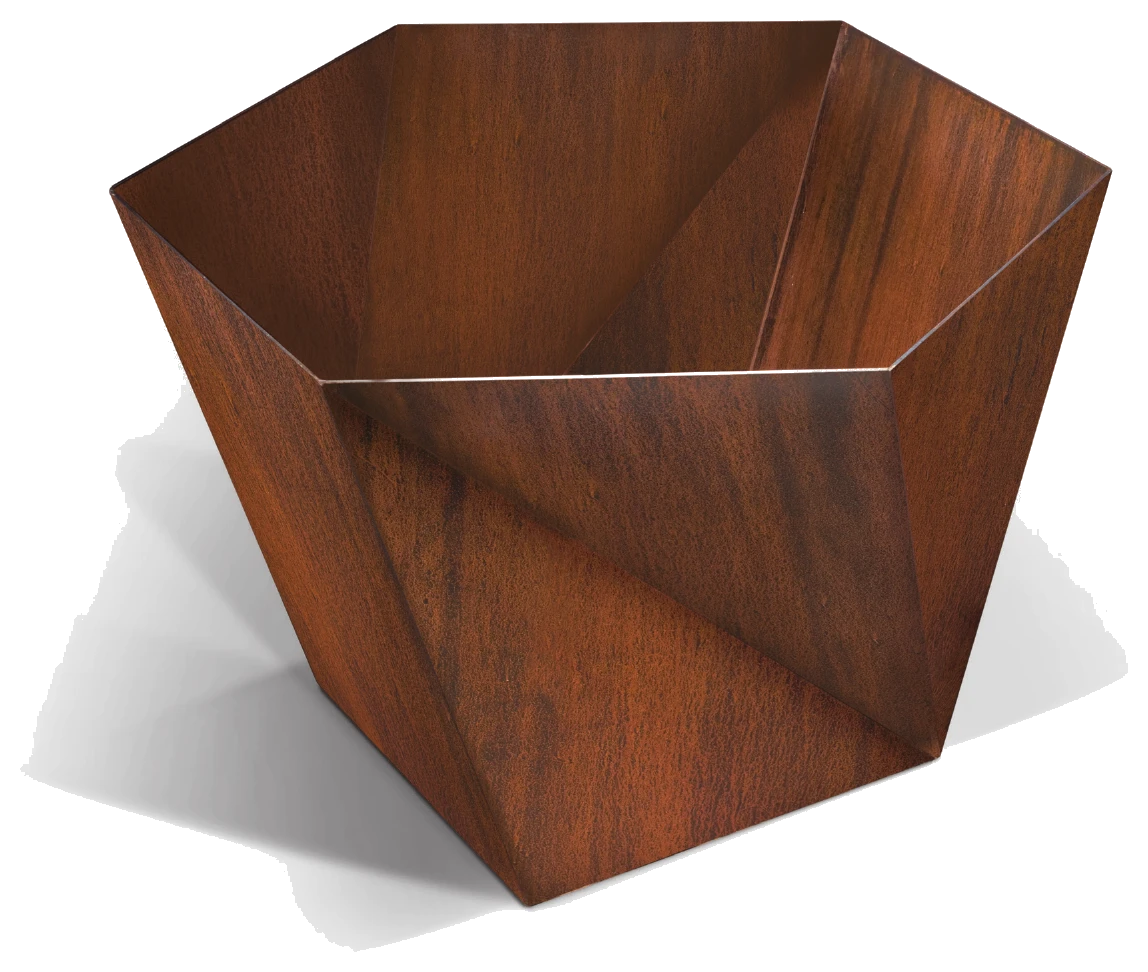

Five Short
The SHORT planter FIVE is made in steel 30/10 thickness. The planter is made of 3 main elements: 2 specular elements with 3 folds each, welded together through continuous welding, later polished so that it’s seamless; and the bottom, welded through continuous welding as well. On the bottom of the planter 2 drain pipes, made in tubular steel, section 16X2 mm, H 50 mm, are welded. Besides there are 4 holes M10 for the fixing to the ground through specific bolts.
For the realization of this product made in Italy, Steel EN10111DD11 is used and later treated with a cycle of sandblasting, cataphoresis and powder coating. Such cycle is meant to guarantee the protection of the painted products, in an environment of C4 corrosion class, as requested by the UNI regulations EN ISO 12944-2. The products are eventually polyester-powder coated with RAL colours at choice.
As an alternative to steel EN10111DD11, the production in corten is also available, on demand. In this case the material is treated with a specific oxidation process.
The SHORT planter FIVE is made in steel 30/10 thickness. The planter is made of 3 main elements: 2 specular elements with 3 folds each, welded together through continuous welding, later polished so that it’s seamless; and the bottom, welded through continuous welding as well. On the bottom of the planter 2 drain pipes, made in tubular steel, section 16X2 mm, H 50 mm, are welded. Besides there are 4 holes M10 for the fixing to the ground through specific bolts.
For the realization of this product made in Italy, Steel EN10111DD11 is used and later treated with a cycle of sandblasting, cataphoresis and powder coating. Such cycle is meant to guarantee the protection of the painted products, in an environment of C4 corrosion class, as requested by the UNI regulations EN ISO 12944-2. The products are eventually polyester-powder coated with RAL colours at choice.
As an alternative to steel EN10111DD11, the production in corten is also available, on demand. In this case the material is treated with a specific oxidation process.

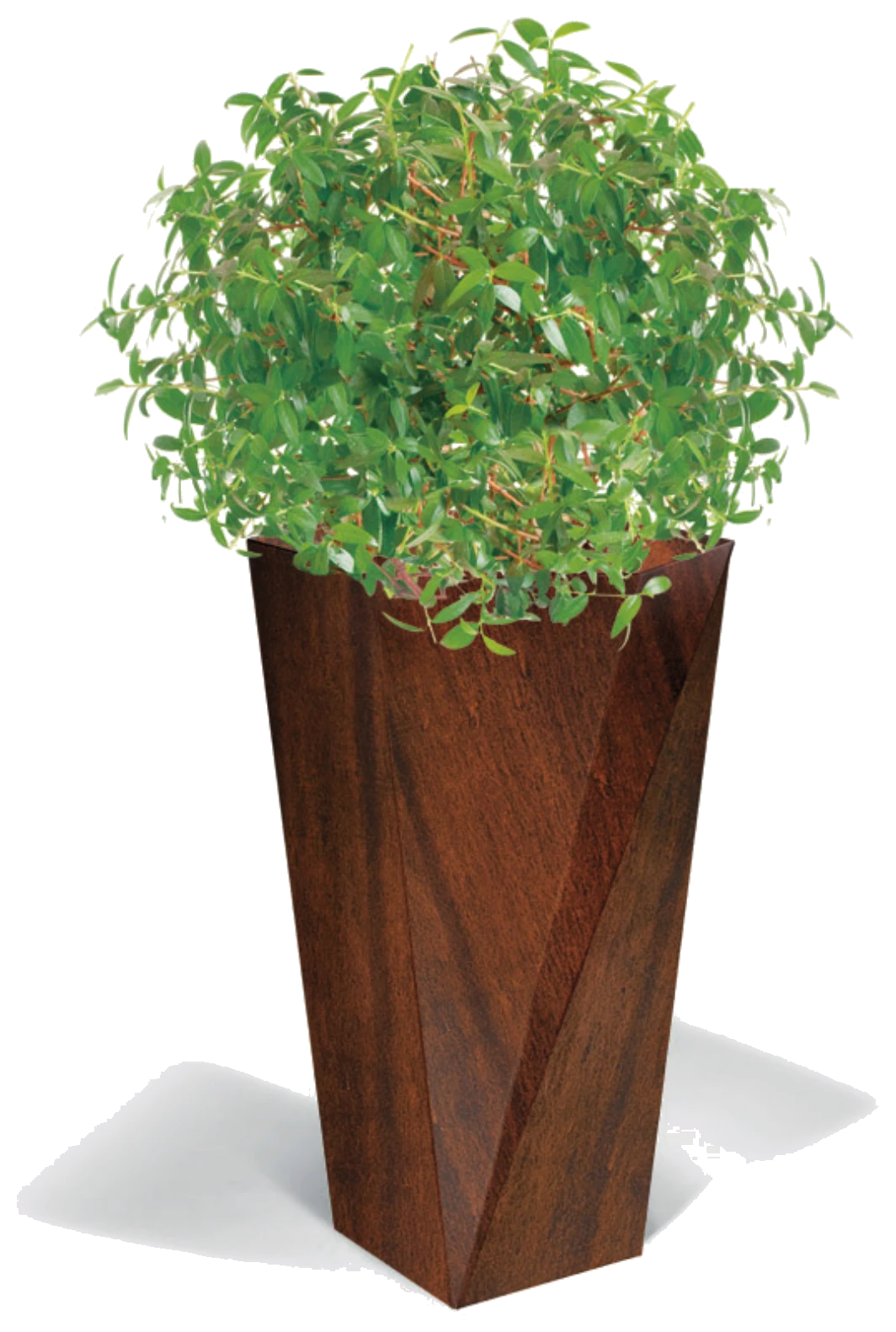

Five Tall
The TALL planter FIVE is made in steel. The planter is made of 3 main elements: 2 specular elements with 3 folds each, welded together through continuous welding, later polished so that it’s seamless; and the bottom, welded through continuous welding as well. On the bottom of the planter 2 drain pipes, made in tubular steel, section 16X2 mm, H 50 mm, are welded. Besides there are 4 holes M10 for the fixing to the ground through specific bolts.
For the realization of this product made in Italy, Steel EN10111DD11 is used and later treated with a cycle of sandblasting, cataphoresis and powder coating. Such cycle is meant to guarantee the protection of the painted products, in an environment of C4 corrosion class, as requested by the UNI regulations EN ISO 12944-2. The products are eventually polyester-powder coated with RAL colours at choice.
As an alternative to steel EN10111DD11, the production in corten is also available, on demand. In this case the material is treated with a specific oxidation process.
The TALL planter FIVE is made in steel. The planter is made of 3 main elements: 2 specular elements with 3 folds each, welded together through continuous welding, later polished so that it’s seamless; and the bottom, welded through continuous welding as well. On the bottom of the planter 2 drain pipes, made in tubular steel, section 16X2 mm, H 50 mm, are welded. Besides there are 4 holes M10 for the fixing to the ground through specific bolts.
For the realization of this product made in Italy, Steel EN10111DD11 is used and later treated with a cycle of sandblasting, cataphoresis and powder coating. Such cycle is meant to guarantee the protection of the painted products, in an environment of C4 corrosion class, as requested by the UNI regulations EN ISO 12944-2. The products are eventually polyester-powder coated with RAL colours at choice.
As an alternative to steel EN10111DD11, the production in corten is also available, on demand. In this case the material is treated with a specific oxidation process.
