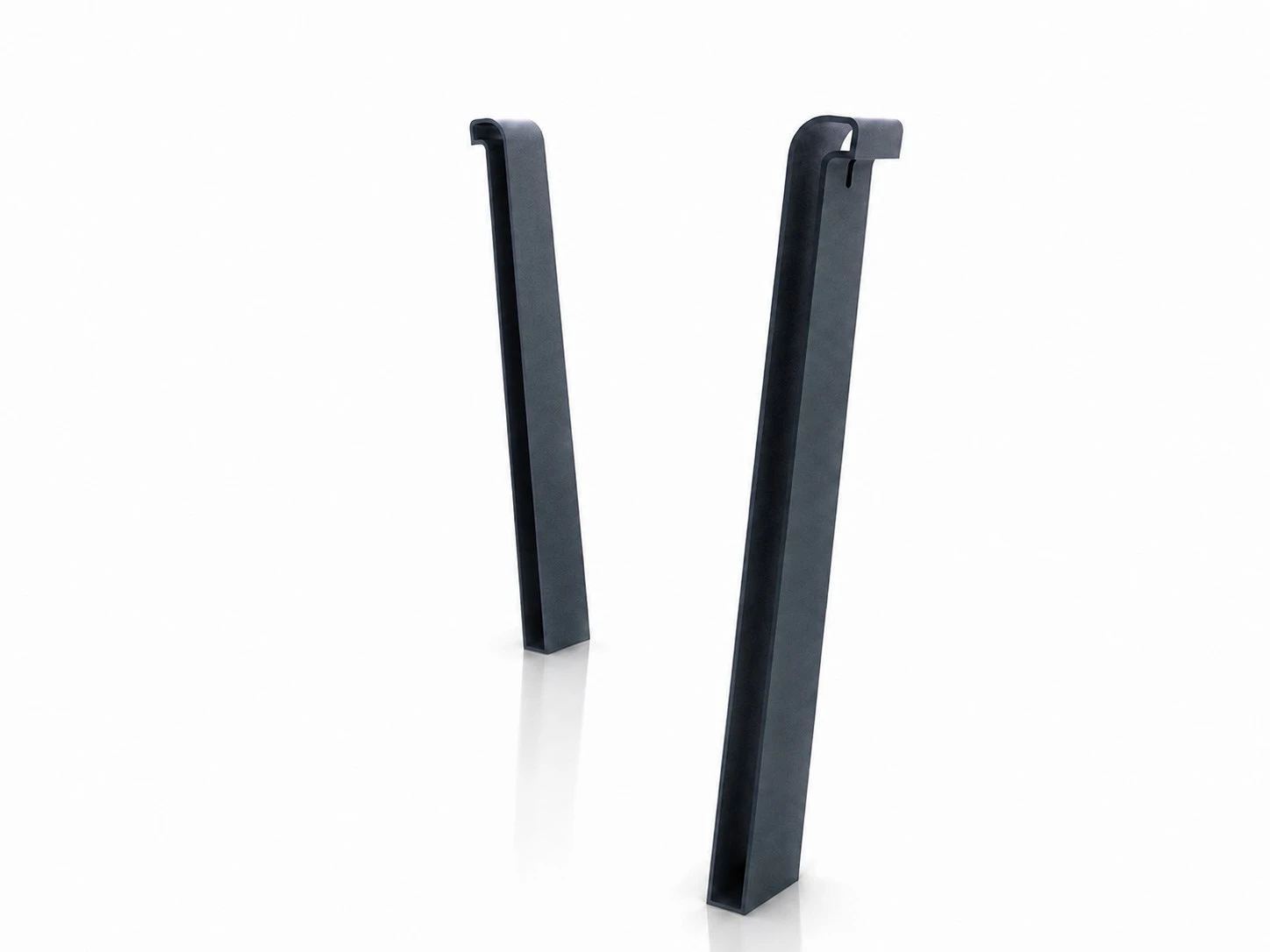

Hi Bike Rack
Hi Bike Rack
Designer: Stéphane Chapelet
A Strong Vertical Element with Two Functions
Hi is a multifunctional bike rack and bollard designed by Stéphane Chapelet.
Its folded steel profile defines pedestrian space while providing openings and an internal reinforcement plate for securing a bicycle. The design is compact, robust, and suitable for repeated installation along streets, plazas, or building entrances.
Construction
Hi is manufactured from steel approximately 0.20 inches / 5 mm thick.
The upper section includes two openings with published diameters of approximately 20 and 30 mm. An internal steel plate reinforces the center of the structure.
Published Dimensions
- Height: approximately 38.6 in / 980 mm
- Base: approximately 5.5 × 3.9 in / 140 × 100 mm
- Width: approximately 7.9 in / 200 mm
- Weight: approximately 24.3 lb / 11 kg
Installation Options
- Surface-mounted flange with four fixing holes
- Embedded extension of approximately 9.8 in / 250 mm
Specification Text
Provide LAB23 Hi combination bike rack and bollard designed by Stéphane Chapelet, manufactured from formed 5 mm steel with reinforced internal locking plate and two upper openings. Provide selected powder-coated finish and specified surface-mounted flange or embedded extension.
Frequently Asked Questions
Gallery
Hi Bike Rack
The HI BIKE RACK serves as both a bollard and a bike rack and is made in steel, 50/10 thickness. On the upper part of the bollard, there are 2 holes with a diameter of 20 and 30 mm. On the middle and inner part of the bollard, a strong plate in steel 50/10 thickness is welded. For the fixing to the ground through specific bolts (not provided), there are two options: a flange 140×100 mm with 4 holes 10 mm diam., or an underground extension of 250 mm if cementation is involved.
This product is entirely made in Italy from steel subjected to an electrolytic galvanising cycle and subsequently painted with PP powders with Ral colour of your choice.
Optional: extension for cementation
The HI BIKE RACK serves as both a bollard and a bike rack and is made in steel, 50/10 thickness. On the upper part of the bollard, there are 2 holes with a diameter of 20 and 30 mm. On the middle and inner part of the bollard, a strong plate in steel 50/10 thickness is welded. For the fixing to the ground through specific bolts (not provided), there are two options: a flange 140×100 mm with 4 holes 10 mm diam., or an underground extension of 250 mm if cementation is involved.
This product is entirely made in Italy from steel subjected to an electrolytic galvanising cycle and subsequently painted with PP powders with Ral colour of your choice.
Optional: extension for cementation
