Hook
Hook
Designer: LAB23
A Tall, Recognizable Locking Point

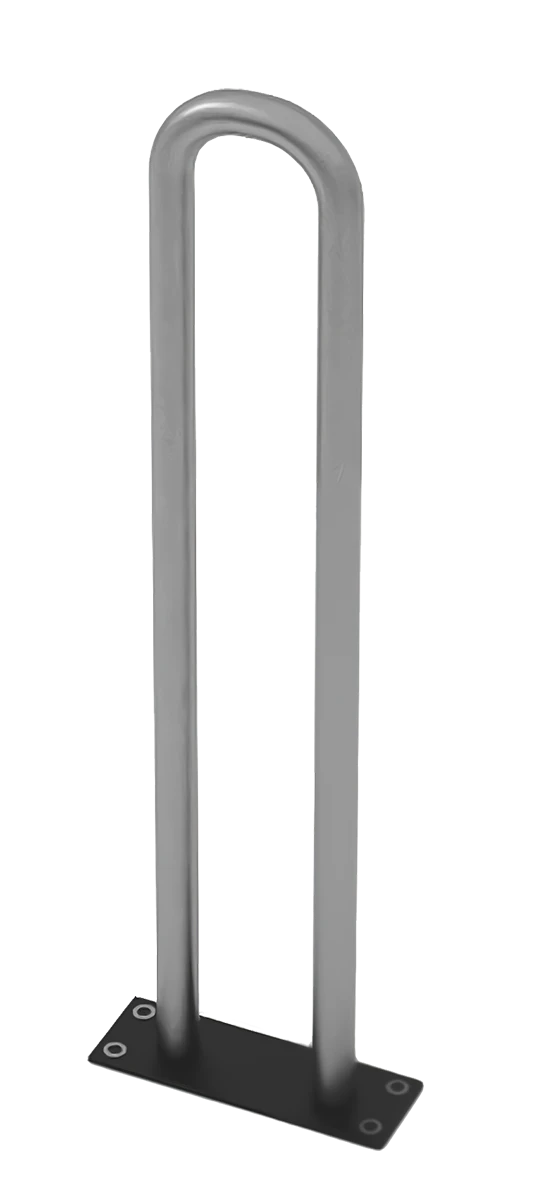

Hook is a slender commercial bike rack designed around a simple tubular-steel profile.
Its tall form provides a convenient point for securing the bicycle frame at an accessible height while maintaining a limited footprint. Hook can be installed individually or repeated along pathways and building frontages.
Construction
The published version uses:
- 1.57 in / 40 mm diameter tubular steel
- Approximately 0.08 in / 2 mm wall thickness
- Steel base plate approximately 0.24 in / 6 mm thick
Installation Options
- Surface-mounted plate with four fixing holes
- Embedded extension approximately 9.8 in / 250 mm long
Published Dimensions
- Height: approximately 39.6 in / 1,006 mm
- Length: approximately 7.9 in / 200 mm
- Tube diameter: approximately 1.57 in / 40 mm
- Weight: approximately 13.2 lb / 6 kg
Materials
- Galvanized and powder-coated steel
- AISI 316 stainless steel upon request
Specification Text
Provide LAB23 Hook commercial bike rack manufactured from 40 mm diameter tubular steel with 2 mm wall thickness. Provide specified surface-mounted base plate or 250 mm embedded extension, selected exterior powder-coated finish, or AISI 316 stainless-steel construction where indicated.
Frequently Asked Questions
Models & Variations
Hook
The bike rack HOOK is made in tubular steel of 40 mm diam and 2 mm thickness. On the base of the bike rack there’s a plate in steel sheet 60/10 thickness, provided with 4 holes 10 mm diam. for the fixing to the ground through specific bolts (not provided). Otherwise there can be an underground extension of 250 mm, for the fixing with the appropriate cementation (in this case there is no base plate).
This product is entirely made in Italy from steel subjected to an electrolytic galvanising cycle and subsequently painted with PP powders with Ral colour of your choice.
This product is also available in stainless steel AISI 316, on demand.
The bike rack HOOK is made in tubular steel of 40 mm diam and 2 mm thickness. On the base of the bike rack there’s a plate in steel sheet 60/10 thickness, provided with 4 holes 10 mm diam. for the fixing to the ground through specific bolts (not provided). Otherwise there can be an underground extension of 250 mm, for the fixing with the appropriate cementation (in this case there is no base plate).
This product is entirely made in Italy from steel subjected to an electrolytic galvanising cycle and subsequently painted with PP powders with Ral colour of your choice.
This product is also available in stainless steel AISI 316, on demand.
