Designer: Fabio Pelizzari

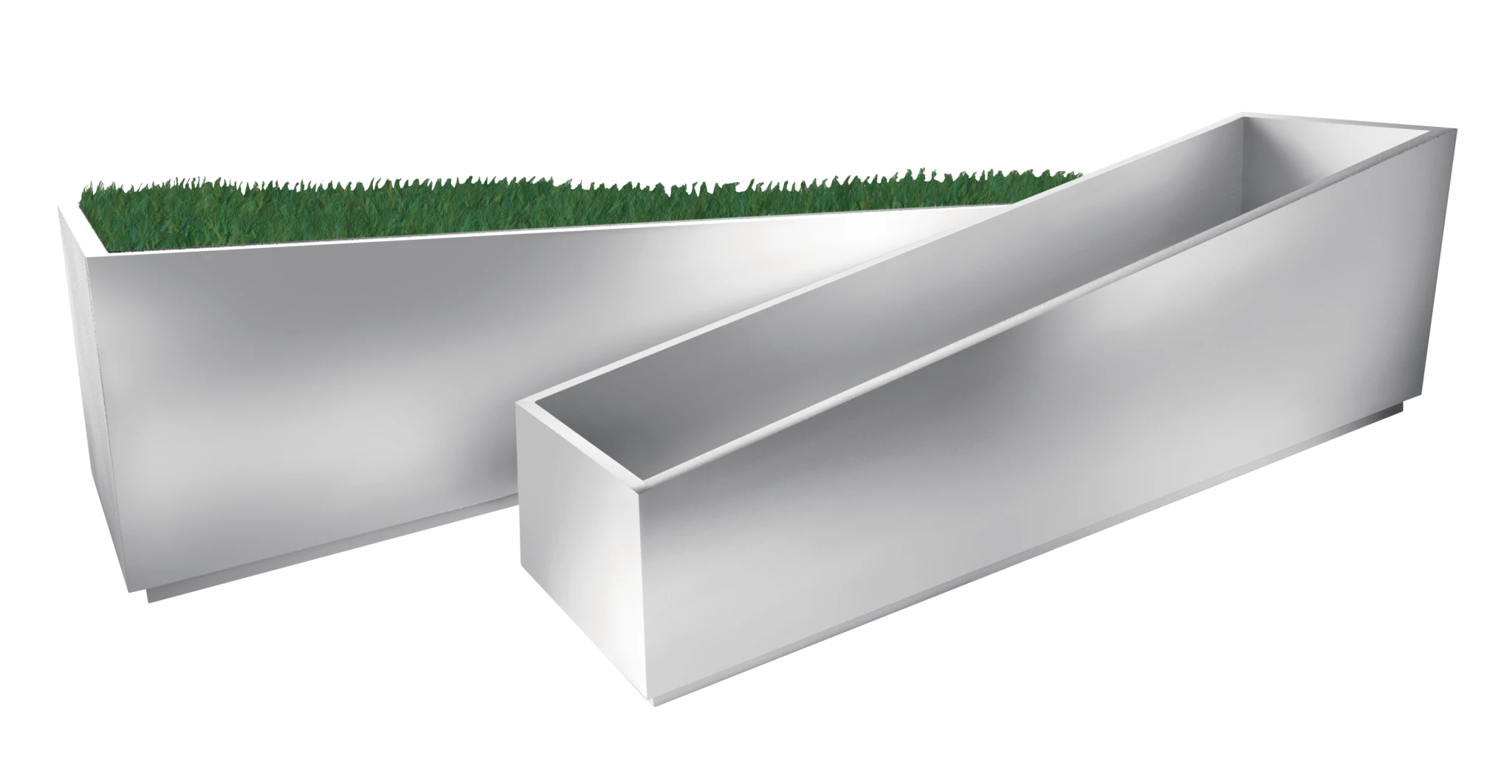

Pelizzari is an asymmetrical steel planter designed by Fabio Pelizzari. Its sloping upper edge creates a dynamic profile and allows it to be used as a directional or sculptural element within the landscape.
The planter is manufactured from 2 mm steel with a reinforced upper edge, recessed base, two drainage pipes, and four fixing holes. Published dimensions are 1,500 x 400 mm, with heights of 450 and 300 mm, and a capacity of approximately 205 liters.
Recommended Applications
Pedestrian streets, plazas, retail developments, hospitality projects, campuses, and linear landscape compositions.
Specification Text
Provide LAB23 Pelizzari asymmetrical commercial planter designed by Fabio Pelizzari, manufactured from 2 mm steel with reinforced upper edge, recessed base, two drainage pipes, four-point fixing, C4-rated protective coating system, selected RAL color or Corten finish, and approximately 205-liter capacity.
Frequently Asked Questions
Gallery
Pelizzari
The planter PELIZZARI is made in steel 20/10 thickness. The upper part of the planter is bent on the inside, resulting in an edge of 40 mm strengthening the whole structure. The left side of the planter is 450 mm high, whereas the right side measures 300 mm. On the base of the planter there’s a receding base of 50 mm each side, with H 50 mm. On the bottom of the planter 2 drain pipes, made in tubular steel, section 16X2 mm, H 50 mm, are welded. For the fixing to the ground through specific bolts (not provided) there are 4 holes 10 mm diam.
For the realization of this product made in Italy, Steel EN10111DD11 is used and later treated with a cycle of sandblasting, cataphoresis and powder coating. Such cycle is meant to guarantee the protection of the painted products, in an environment of C4 corrosion class, as requested by the UNI regulations EN ISO 12944-2. The products are eventually polyester-powder coated with RAL colours at choice.
As an alternative to steel EN10111DD11, the production in corten is also available, on demand. In this case the material is treated with a specific oxidation process.
The planter PELIZZARI is made in steel 20/10 thickness. The upper part of the planter is bent on the inside, resulting in an edge of 40 mm strengthening the whole structure. The left side of the planter is 450 mm high, whereas the right side measures 300 mm. On the base of the planter there’s a receding base of 50 mm each side, with H 50 mm. On the bottom of the planter 2 drain pipes, made in tubular steel, section 16X2 mm, H 50 mm, are welded. For the fixing to the ground through specific bolts (not provided) there are 4 holes 10 mm diam.
For the realization of this product made in Italy, Steel EN10111DD11 is used and later treated with a cycle of sandblasting, cataphoresis and powder coating. Such cycle is meant to guarantee the protection of the painted products, in an environment of C4 corrosion class, as requested by the UNI regulations EN ISO 12944-2. The products are eventually polyester-powder coated with RAL colours at choice.
As an alternative to steel EN10111DD11, the production in corten is also available, on demand. In this case the material is treated with a specific oxidation process.
