Peo
Peo
Designer: Leonardo Battaglini
Lightweight Design with a Clear Locking Opening

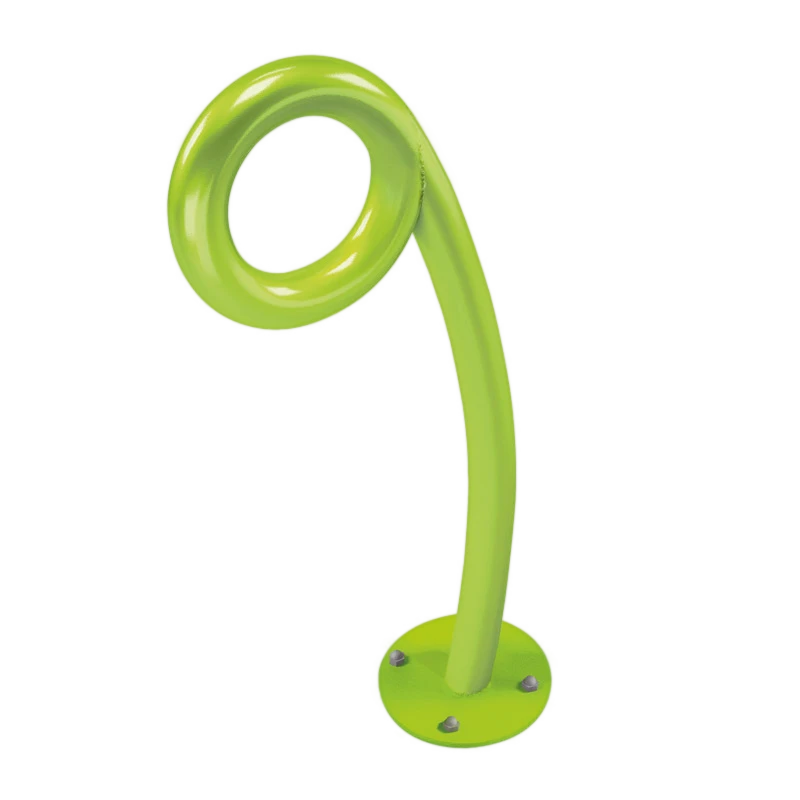

Peo is a compact commercial bike rack designed by Studiorange.
Its tubular-steel form creates a rounded opening that offers practical locking points for the bicycle frame. The lightweight visual profile makes Peo suitable for locations where bicycle parking should remain discreet.
Construction
- Steel tube diameter: approximately 1.69 in / 43 mm
- Wall thickness: approximately 0.08 in / 2 mm
- Circular base plate: approximately 5.9 in / 150 mm diameter
- Four base fixing holes
Published Dimensions
- Height: approximately 27.7 in / 704.5 mm
- Opening diameter: approximately 11.5 in / 293 mm
- Weight: approximately 8.8 lb / 4 kg
Installation Options
- Surface-mounted circular base plate
- Embedded extension approximately 9.8 in / 250 mm
Specification Text
Provide LAB23 Peo commercial bicycle rack designed by Studiorange, manufactured from 43 mm diameter tubular steel with 2 mm wall thickness. Provide specified circular base plate with four anchoring holes or 250 mm embedded extension and selected powder-coated exterior finish.
Frequently Asked Questions
Gallery
Peo
The bike rack PEO is made in tubular steel of 43 mm diam. and 2 mm thickness. It is fixed to the ground through a circular base plate of 150 mm diam and 80/10 thickness, with 4 holes of 13 mm diam. for the use of specific bolts (not provided), welded to the tubular steel.
Peo with extension version
The bike rack PEO is made in tubular steel of 43 mm diam. and 2 mm thickness. It is fixed to the ground through an underground extension of 250 mm, to be cemented.
This product is entirely made in Italy from steel subjected to an electrolytic galvanising cycle and subsequently painted with PP powders with Ral colour of your choice.
The bike rack PEO is made in tubular steel of 43 mm diam. and 2 mm thickness. It is fixed to the ground through a circular base plate of 150 mm diam and 80/10 thickness, with 4 holes of 13 mm diam. for the use of specific bolts (not provided), welded to the tubular steel.
Peo with extension version
The bike rack PEO is made in tubular steel of 43 mm diam. and 2 mm thickness. It is fixed to the ground through an underground extension of 250 mm, to be cemented.
This product is entirely made in Italy from steel subjected to an electrolytic galvanising cycle and subsequently painted with PP powders with Ral colour of your choice.
