Designer: Stéphane Chapelet
Integrated Waste and Cigarette Disposal

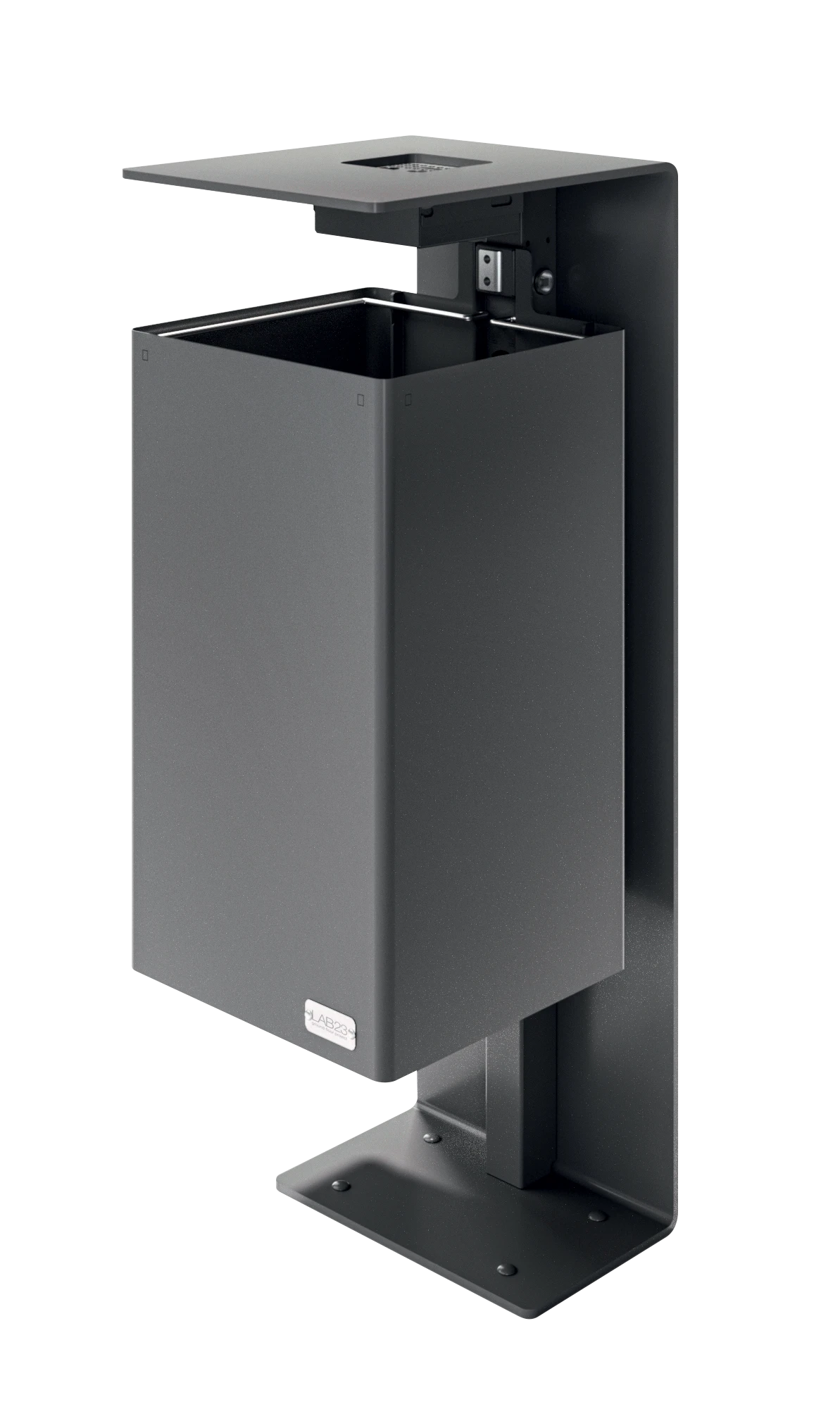

Pure is a commercial trash receptacle designed by Stéphane Chapelet.
The supporting structure and upper cover are formed from a single substantial steel plate. The waste body pivots around a rear pin when unlocked, allowing maintenance personnel to access and empty the bag-retention system.
An integrated cigarette container is positioned within the upper structure and can be emptied through a sliding guide system without removing the complete assembly.
Published Capacity and Dimensions
- Waste capacity: approximately 11.9 U.S. gallons / 45 liters
- Ashtray capacity: approximately 0.2 U.S. gallon / 0.75 liter
- Height: approximately 31.6 in / 803 mm
- Height with rain cover: approximately 37.1 in / 942 mm
- Length: approximately 14.5 in / 369 mm
- Width: approximately 12.3 in / 313 mm
- Published weight: approximately 94.8 lb / 43 kg
Specification Text
Provide LAB23 Pure commercial trash and ash receptacle designed by Stéphane Chapelet, with 45-liter waste capacity, integrated 0.75-liter cigarette container, lockable pivoting waste body, internal stainless-steel or galvanized bag holder, optional rain cover, selected exterior powder-coated finish, and four-point ground anchoring.
Frequently Asked Questions
Gallery
Pure Bin
The PURE bin is made in steel sheet. The cover and the load-bearing structure are made of a single steel sheet of 80/10 thickness, with a central support made of a steel sheet of 20/10 thickness. The structure of the bin has a 15/10 thickness on the front part and on the side, and has a 20/10 thickness on the back and on the bottom. Inside the bin, a bag-holder in stainless steel or galvanized steel of 6 mm diam. is hooked. The bin can be emptied by rotating it on a pivot placed on the back of the bottom, thanks to the lock on the load-bearing structure. On the upper part of the load-bearing structure, an ashtray is placed, resulting from the fold of steel sheets of 10/10 thickness, and is provided with a rail system that allows the bin to be emptied without removing it completely. The bin can be fixed to the ground through 4 holes of 11 mm diam for the insertion of specific bolts (not provided).
This product is entirely made in Italy from steel subjected to an electrolytic galvanising cycle and subsequently painted with PP powders with Ral colour of your choice.
The PURE bin is made in steel sheet. The cover and the load-bearing structure are made of a single steel sheet of 80/10 thickness, with a central support made of a steel sheet of 20/10 thickness. The structure of the bin has a 15/10 thickness on the front part and on the side, and has a 20/10 thickness on the back and on the bottom. Inside the bin, a bag-holder in stainless steel or galvanized steel of 6 mm diam. is hooked. The bin can be emptied by rotating it on a pivot placed on the back of the bottom, thanks to the lock on the load-bearing structure. On the upper part of the load-bearing structure, an ashtray is placed, resulting from the fold of steel sheets of 10/10 thickness, and is provided with a rail system that allows the bin to be emptied without removing it completely. The bin can be fixed to the ground through 4 holes of 11 mm diam for the insertion of specific bolts (not provided).
This product is entirely made in Italy from steel subjected to an electrolytic galvanising cycle and subsequently painted with PP powders with Ral colour of your choice.
