Quaddy
Quaddy
Designer: Leonardo Battaglini

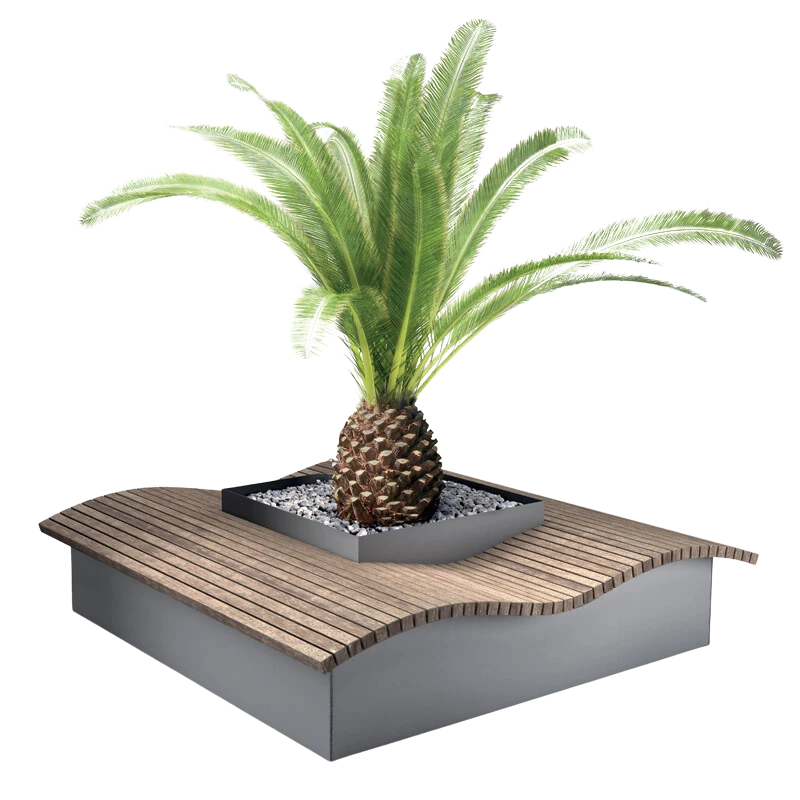

Quaddy is a compact planter with a clean contemporary profile. Its manageable footprint makes it suitable for repeated installations and for projects where greenery must be introduced without occupying excessive space.
Final dimensions, capacity, material, drainage, liner, and fixing details must be confirmed from the current LAB23 technical documentation.
Recommended Applications
Building entrances, terraces, retail projects, campuses, residential developments, and public courtyards.
Specification Text
Provide LAB23 Quaddy commercial planter in the manufacturer’s approved dimensions, material, planting capacity, finish, drainage system, and mounting configuration.
Frequently Asked Questions
Gallery
Quaddy
The structure of the planter QUADDY is made of modules in steel 15/10 and 30/10 thickness, joined together with M8 screws. In the middle of the load-bearing structure there is a planter 15/10 thickness with dimensions 1000x1000xH 600 mm. On the bottom 2 drain pipes, made in tubular steel with section 16×2 mm, h 50 mm, are welded. On the upper part of the modules of the structure calendered plates 15/10 thickness, serving as a support of the wooden slats of the seat, are welded. The slats are made in exotic wood 50×50 mm.
This product is entirely made in Italy from steel subjected to an electrolytic galvanising cycle and subsequently painted with PP powders with Ral colour of your choice.
The wood used is either Iroko or Okume, treated with natural, water-repellent, UV ray resistant oils.
The structure of the planter QUADDY is made of modules in steel 15/10 and 30/10 thickness, joined together with M8 screws. In the middle of the load-bearing structure there is a planter 15/10 thickness with dimensions 1000x1000xH 600 mm. On the bottom 2 drain pipes, made in tubular steel with section 16×2 mm, h 50 mm, are welded. On the upper part of the modules of the structure calendered plates 15/10 thickness, serving as a support of the wooden slats of the seat, are welded. The slats are made in exotic wood 50×50 mm.
This product is entirely made in Italy from steel subjected to an electrolytic galvanising cycle and subsequently painted with PP powders with Ral colour of your choice.
The wood used is either Iroko or Okume, treated with natural, water-repellent, UV ray resistant oils.
