Side
Side
Designer: Stéphane Chapelet
Compact Form, Strong Architectural Character

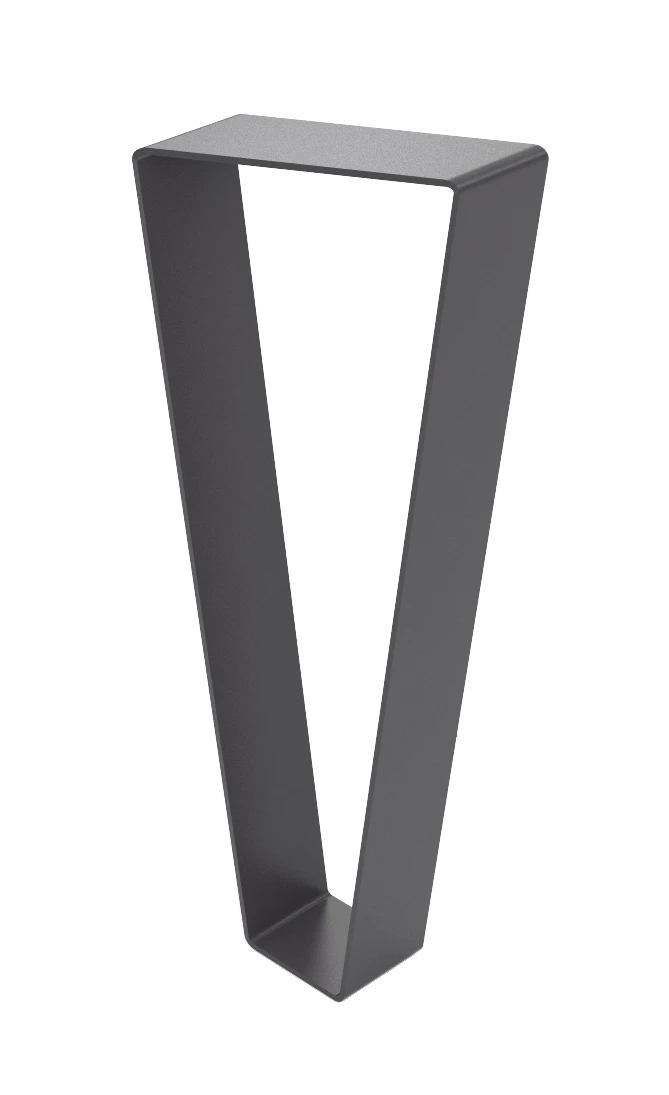

Side is a compact commercial bike rack designed by Stéphane Chapelet.
Its folded and continuously welded steel construction creates a recognizable three-dimensional profile within a very small footprint. The rack can be installed individually or repeated to create a rhythmic streetscape arrangement.
Construction
- Formed steel approximately 0.20 in / 5 mm thick
- Continuously welded two-element structure
- Two base holes for surface anchoring
Published Dimensions
- Height: approximately 26.8 in / 680 mm
- Length: approximately 7.8 in / 198.2 mm
- Width: approximately 7.8 in / 198.5 mm
- Weight: approximately 13.2 lb / 6 kg
Materials
- Electrolytically galvanized and powder-coated steel
- AISI 316 stainless steel upon request
Specification Text
Provide LAB23 Side bicycle rack designed by Stéphane Chapelet, manufactured from continuously welded formed-steel elements approximately 5 mm thick. Provide two base anchoring holes, selected powder-coated finish, or AISI 316 stainless-steel construction as specified.
Frequently Asked Questions
Gallery
Side
The bike rack SIDE is made in steel 50/10 thickness. It is the result of the continuous welding of 2 elements and on the base there are 2 holes 14 mm diam. for the fixing to the ground through specific bolts (not provided).
This product is entirely made in Italy from steel subjected to an electrolytic galvanising cycle and subsequently painted with PP powders with Ral colour of your choice.
This product is also available in stainless steel AISI 316, on demand.
The bike rack SIDE is made in steel 50/10 thickness. It is the result of the continuous welding of 2 elements and on the base there are 2 holes 14 mm diam. for the fixing to the ground through specific bolts (not provided).
This product is entirely made in Italy from steel subjected to an electrolytic galvanising cycle and subsequently painted with PP powders with Ral colour of your choice.
This product is also available in stainless steel AISI 316, on demand.
