U Light
U Light
Designer: LAB23

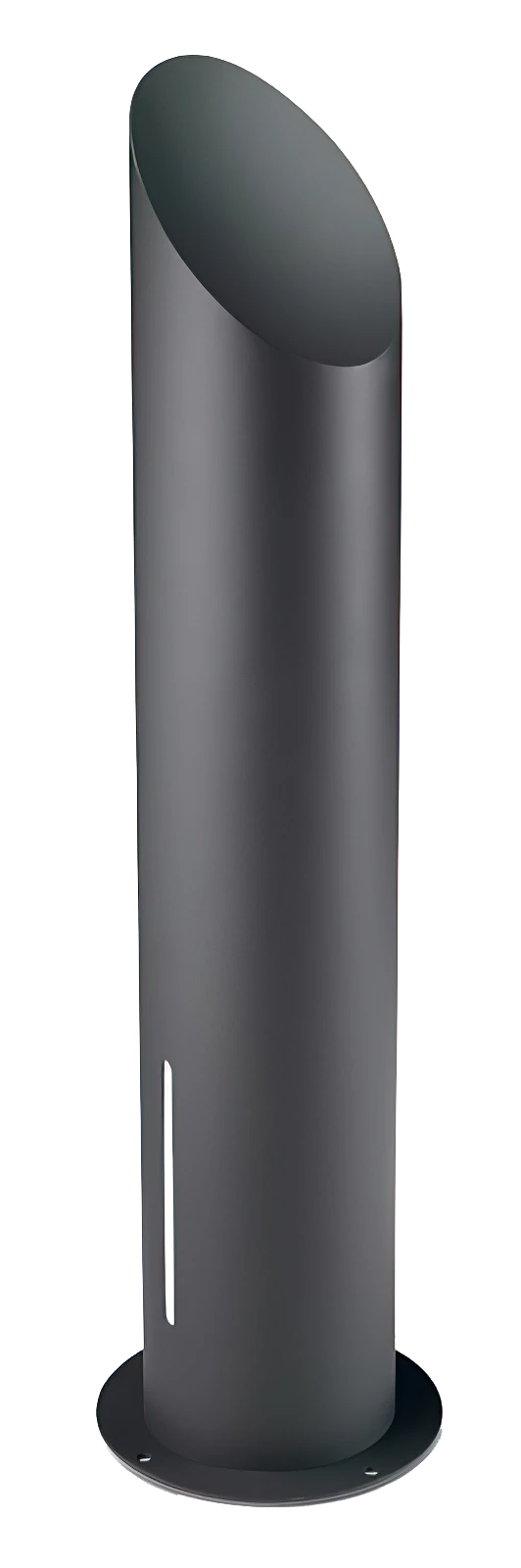

U Light integrates functional pathway illumination into a robust commercial bollard. A vertical polycarbonate lens distributes light from an internal LED assembly while the steel body defines circulation and pedestrian space.

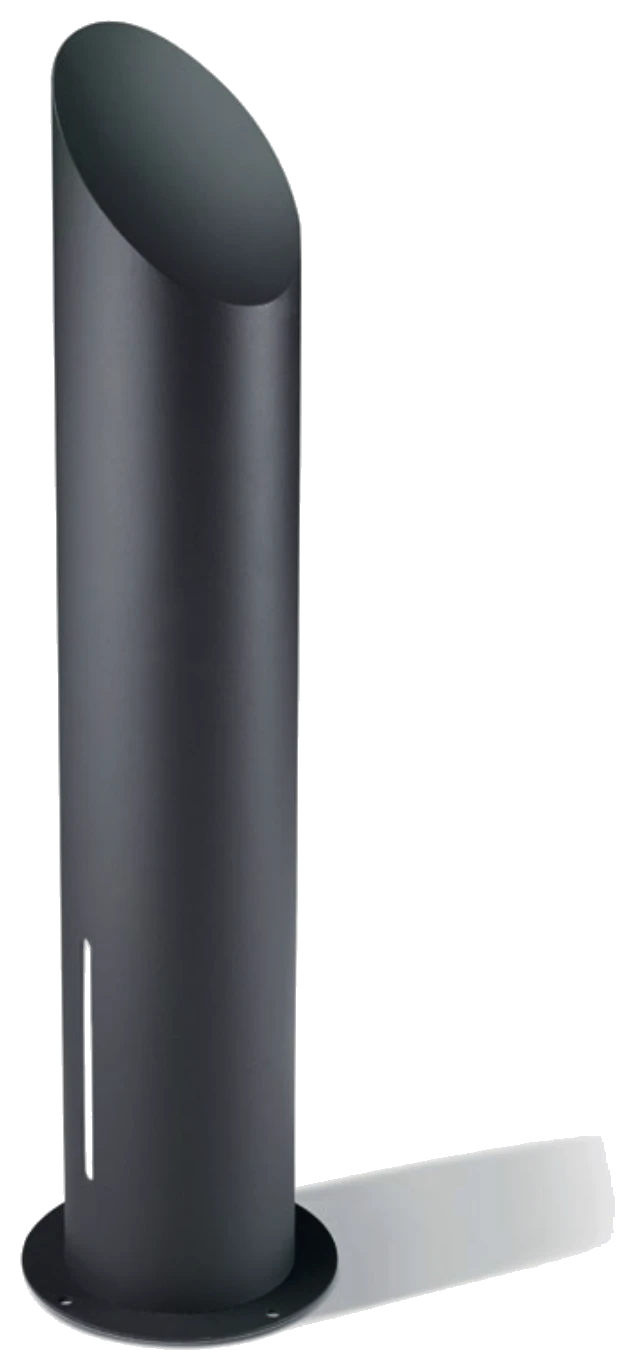

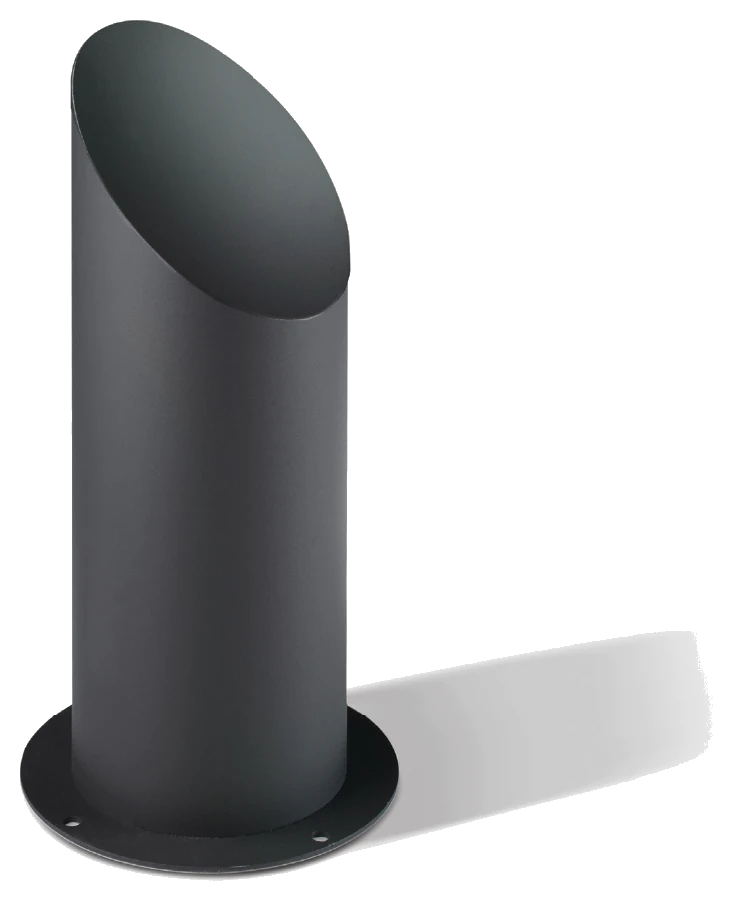

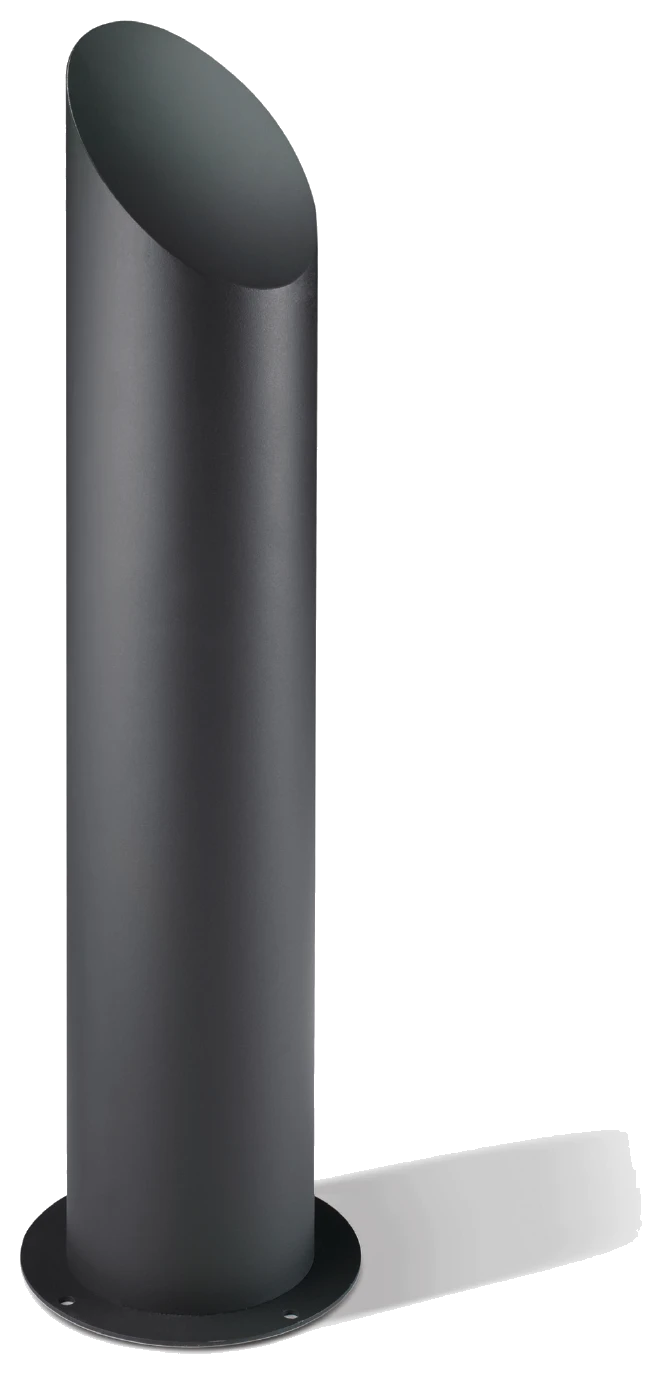

The published U Light 1 uses 152 mm diameter, 3 mm thick tubular steel with a 45-degree top and integrated opal-polycarbonate lens. Heights include approximately 450 and 800 mm. Surface-mounted and embedded versions are available.
Recommended Applications
Pedestrian paths, plazas, campuses, hospitality landscapes, building entrances, parks, and residential developments.
Specification Text
Provide LAB23 U Light illuminated bollard in the selected model and height, manufactured from 152 mm diameter tubular steel with integrated opal-polycarbonate lens, internal galvanized LED support, selected powder-coated finish, approved surface-mounted or embedded installation, transformer, and electrical connection provisions.
Pedestrian Barriers
5 product pages with unique American-English SEO copy and FAQs.
Frequently Asked Questions
Models & Variations
U Light
The bollard U LIGHT 1 with LED is made in steel, more specifically in tubular steel 152 mm diam. and 3 mm thick, laser-cut on the upper part with an inclination of 45°, where a plate, welded through continuous welding and later polished so that it’s seamless, is fixed. On the base of the bollard a flange with 4 holes, 11 mm diam., is welded for the fixing to the ground through specific bolts (not provided). The version for the fixing through cementation is provided with an under flange extension of 250 mm and the flange comes with no holes. In the tubular steel there’s a loop of dimensions 10xH 200 mm, which a plate in opal polycarbonate is applied to. Inside the bollard, a structure in galvanized steel with the led lights is placed.
This product is entirely made in Italy from steel subjected to an electrolytic galvanising cycle and subsequently painted with PP powders with Ral colour of your choice.
The galvanized steel used is steel EN10346DX51D+Z and, unless otherwise stated, is not painted.
The bollard U LIGHT 1 with LED is made in steel, more specifically in tubular steel 152 mm diam. and 3 mm thick, laser-cut on the upper part with an inclination of 45°, where a plate, welded through continuous welding and later polished so that it’s seamless, is fixed. On the base of the bollard a flange with 4 holes, 11 mm diam., is welded for the fixing to the ground through specific bolts (not provided). The version for the fixing through cementation is provided with an under flange extension of 250 mm and the flange comes with no holes. In the tubular steel there’s a loop of dimensions 10xH 200 mm, which a plate in opal polycarbonate is applied to. Inside the bollard, a structure in galvanized steel with the led lights is placed.
This product is entirely made in Italy from steel subjected to an electrolytic galvanising cycle and subsequently painted with PP powders with Ral colour of your choice.
The galvanized steel used is steel EN10346DX51D+Z and, unless otherwise stated, is not painted.
