Eight Bike Rack
Eight Bike Rack
Designer: LAB23
Bicycle Parking and Space Definition in One Element

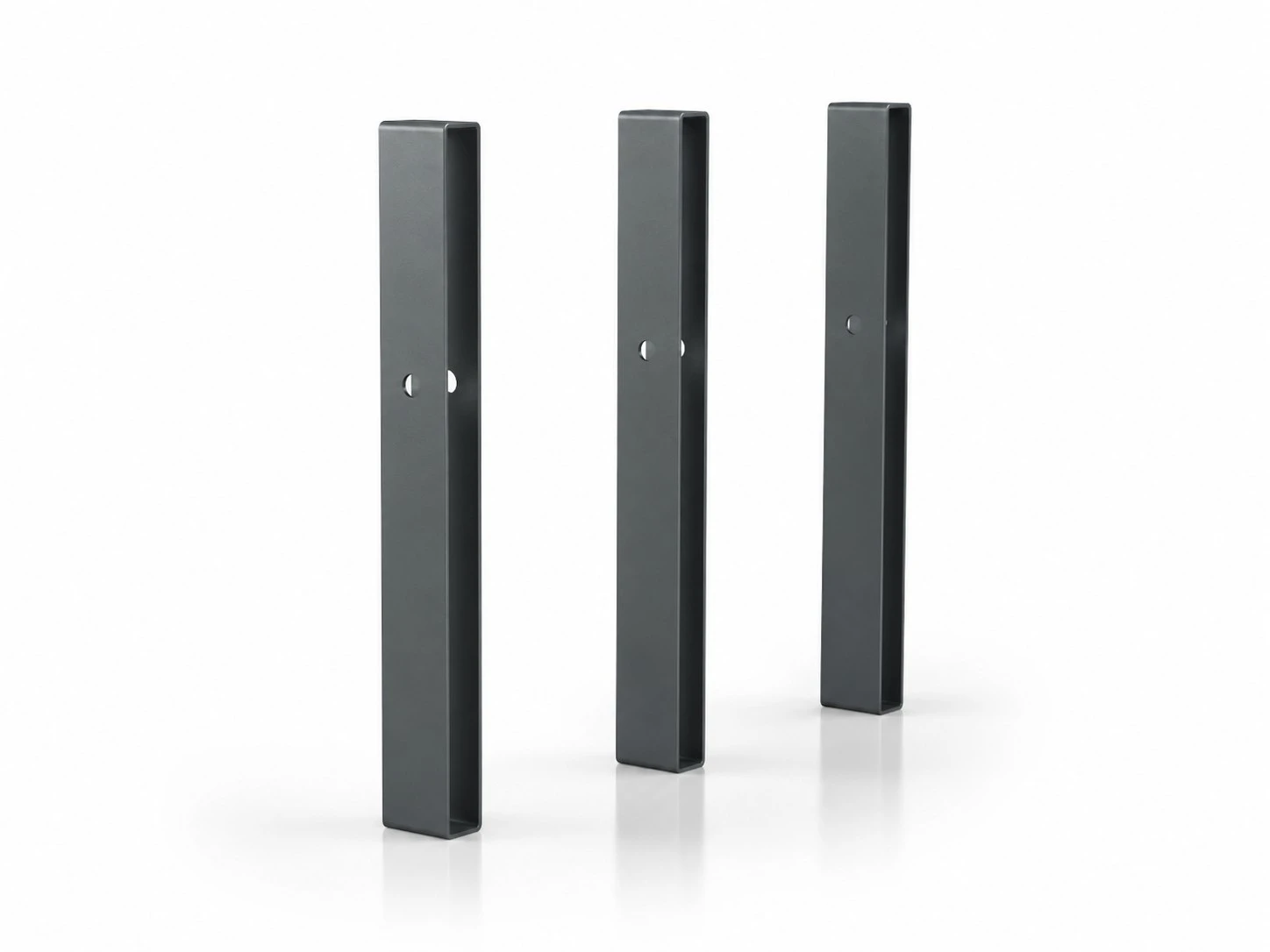

Eight is a multifunctional streetscape element designed by Studiorange.
Its compact vertical form allows it to operate as both a bicycle rack and a visual bollard. A circular opening through the sides provides a defined point for attaching a bicycle lock or chain.
Eight is particularly useful for projects requiring bicycle parking without introducing a conventional horizontal rack.
Construction
The product is manufactured from continuously welded steel components approximately 0.24 inches thick.
Published material and finish options include:
- Electrolytically galvanized and polyester powder-coated steel
- Custom RAL colors
- AISI 316 stainless steel upon request
Published Dimensions
- Height: approximately 31.5 in / 800 mm
- Length: approximately 3.5 in / 90 mm
- Width: approximately 3 in / 75 mm
- Weight: approximately 17.6 lb / 8 kg
Installation
Published options include surface mounting through base holes and an embedded extension, depending on the selected version.
Specification Text
Provide LAB23 Eight combination bike rack and bollard designed by Studiorange, manufactured from continuously welded steel elements approximately 6 mm thick. Provide integrated 30 mm chain opening, selected powder-coated or AISI 316 stainless-steel finish, and approved surface-mounted or embedded fixing system.
Frequently Asked Questions
Gallery
Eight Bike Rack
The bike rack/bollard EIGHT is made in steel 60/10 thickness. It is the result of the continuous welding of two elements. On the sides of the bike rack there’s a hole of 30 mm diam. for the bike chain. The base is provided with 2 holes of 14 mm diam. for the fixing to the ground through specific bolts (not provided).
This product is entirely made in Italy from steel subjected to an electrolytic galvanising cycle and subsequently painted with PP powders with Ral colour of your choice.
This product is also available in stainless steel AISI 316, on demand.
The bike rack/bollard EIGHT is made in steel 60/10 thickness. It is the result of the continuous welding of two elements. On the sides of the bike rack there’s a hole of 30 mm diam. for the bike chain. The base is provided with 2 holes of 14 mm diam. for the fixing to the ground through specific bolts (not provided).
This product is entirely made in Italy from steel subjected to an electrolytic galvanising cycle and subsequently painted with PP powders with Ral colour of your choice.
This product is also available in stainless steel AISI 316, on demand.
