Fluxus Bike Rack
Fluxus Bike Rack
Designer: Roberto Semprini
A Coordinated Bicycle-Parking System with Architectural Presence

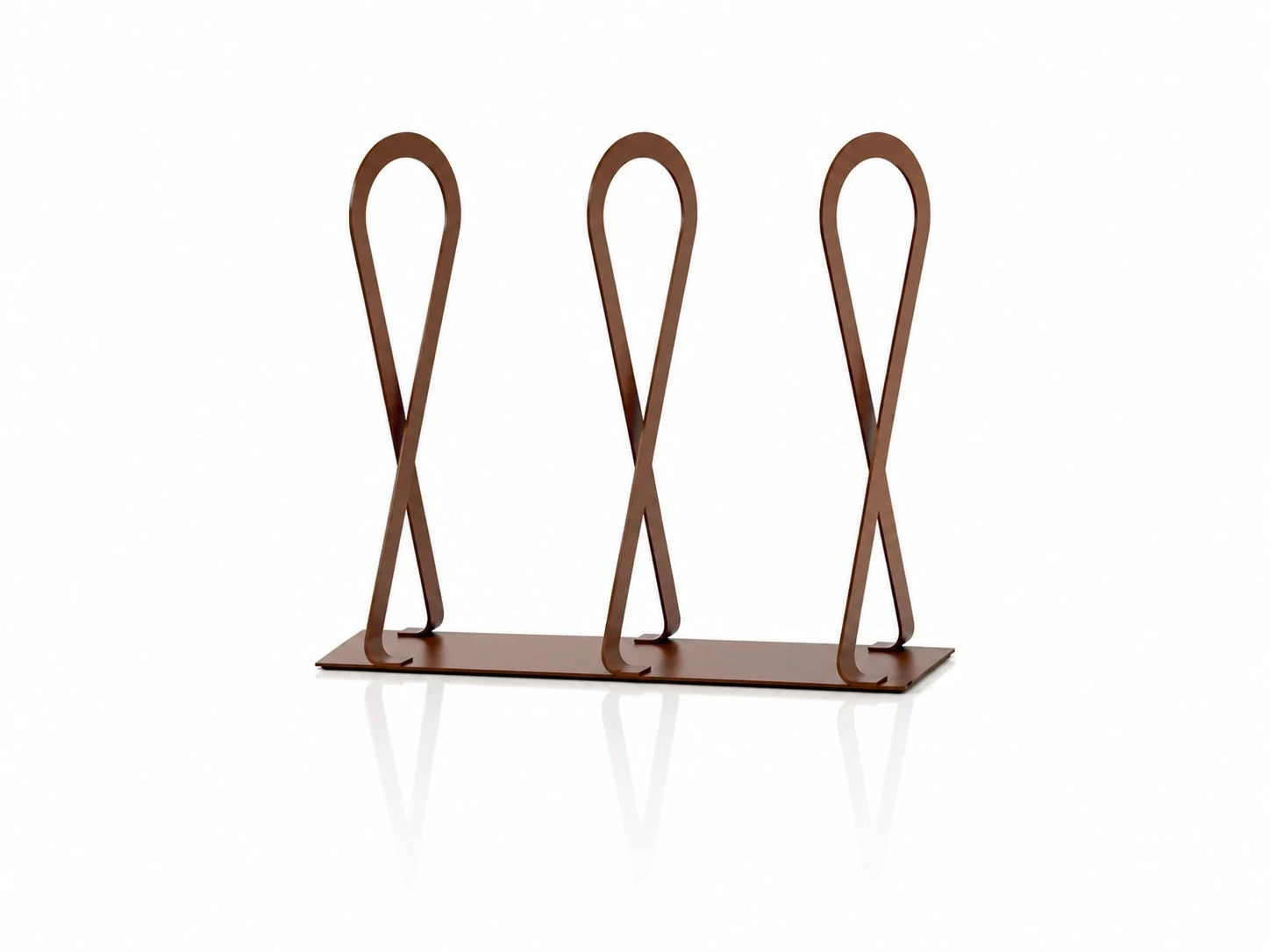

Fluxus is a multi-position commercial bike rack designed by Roberto Semprini.
The product uses loop-shaped steel supports welded to a substantial continuous base plate. Its broad, flowing profile coordinates with the other products in the Fluxus collection and creates a strong architectural identity within the landscape.
Construction
The published version is manufactured from approximately 0.24-inch-thick steel.
The loop elements are arranged at an approximate center-to-center spacing of 25.7 inches / 652 mm. The base plate includes eight fixing holes for surface anchoring.
Materials and Finishes
Published options include:
- Treated and polyester powder-coated steel
- Custom RAL colors
- Corten steel upon request
Published Dimensions
- Base plate: approximately 58.3 × 15.7 in / 1,480 × 400 mm
- Height: approximately 33.5 in / 850 mm
- Weight: approximately 92.6 lb / 42 kg
Recommended Applications
- Transit areas
- Universities
- Corporate campuses
- Retail centers
- Municipal buildings
- Public parks
- Residential developments
Specification Text
Provide LAB23 Fluxus multi-position bike rack designed by Roberto Semprini, manufactured from 6 mm steel with loop-shaped bicycle supports welded to a continuous base plate. Provide eight base-fixing holes, selected protective treatment, polyester powder-coated finish or Corten steel, and installation in accordance with approved drawings.
Frequently Asked Questions
Gallery
Fluxus Bike Rack
The bike rack is made in steel sheet 60/10 thickness. The loop-shaped elements of the bike rack are welded to the plate with an interaxis of 65,2 cm. On the plate there are 8 holes 11 mm diam. for the fixing to the ground through specific bolts (not provided).
For the realization of this product made in italy, Steel EN10111DD11 is used and later treated with a cycle of sandblasting, cataphoresis and powder coating. Such cycle is meant to guarantee the protection of the painted products, in an environment of C4 corrosion class, as requested by the UNI regulations EN ISO 12944-2. The products are eventually polyester-powder coated with RAL colours at choice.
As an alternative to steel EN10111DD11, the production in corten is also available, on demand. In this case the material is treated with a specific oxidation process.
The bike rack is made in steel sheet 60/10 thickness. The loop-shaped elements of the bike rack are welded to the plate with an interaxis of 65,2 cm. On the plate there are 8 holes 11 mm diam. for the fixing to the ground through specific bolts (not provided).
For the realization of this product made in italy, Steel EN10111DD11 is used and later treated with a cycle of sandblasting, cataphoresis and powder coating. Such cycle is meant to guarantee the protection of the painted products, in an environment of C4 corrosion class, as requested by the UNI regulations EN ISO 12944-2. The products are eventually polyester-powder coated with RAL colours at choice.
As an alternative to steel EN10111DD11, the production in corten is also available, on demand. In this case the material is treated with a specific oxidation process.
